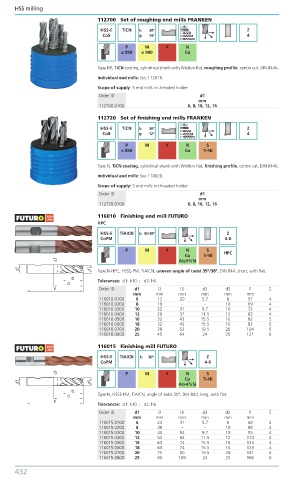

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
112700 Set of roughing end mills FRANKEN

HSS-E TiCN λ: 30º Z
Co5 γ: 14º 4
P M K N
≤ 850 ≤ 900 Cu

Type NR, TiCN coating, cylindrical shank with Weldon flat, roughing profile, centre cut, DIN 844K.
Individual end mills: See 112010.
Scope of supply: 5 end mills in threaded holder.
Order ID d1
mm
112700.0100 6, 8, 10, 12, 16
112720 Set of finishing end mills FRANKEN
HSS-E TiCN λ: 30º Z
Co8 γ: 12º 4

P M K N S
≤ 850 Cu Ti-Ni

Type N, TiCN coating, cylindrical shank with Weldon flat, finishing profile, centre cut, DIN 844K.
Individual end mills: See 110020.
Scope of supply: 5 end mills in threaded holder.
Order ID d1
mm
112720.0100 6, 8, 10, 12, 16

116010 Finishing end mill FUTURO
HPC
HSS-E TiAICN λ: 35/38º Z
CoPM 4-6

P M K N S
Cu Ti-Ni HPC
AI≥4%Si
Type N-HPC, HSSE-PM, TiAlCN, uneven angle of twist 35°/38°, DIN 844, short, with flat.
Tolerances: d1: k10 ; d2: h6
Order ID d1 l2 l3 d3 d2 l1 Z
mm mm mm mm mm mm
116010.0100 6 13 20 5.7 6 57 4
116010.0200 8 19 - - 10 69 4
116010.0300 10 22 31 9.7 10 72 4
116010.0400 12 26 37 11.5 12 83 4
116010.0500 16 32 43 15.5 16 92 5
116010.0600 18 32 43 15.5 16 92 5
116010.0700 20 38 53 19.5 20 104 5
116010.0800 25 45 64 24 25 121 6
116015 Finishing mill FUTURO
HSS-E TiAICN λ: 30º Z
CoPM 4-6
P M K N S
Cu Ti-Ni
AI≥4%Si
Type N, HSSE-PM, TiAlCN, angle of twist 30°, DIN 844, long, with flat.
Tolerances: d1: k10 ; d2: h6
Order ID d1 l2 l3 d3 d2 l1 Z
mm mm mm mm mm mm
116015.0100 6 24 31 5.7 6 68 4
116015.0200 8 38 - - 10 88 4
116015.0300 10 45 54 9.7 10 95 4
116015.0400 12 53 64 11.5 12 110 4
116015.0500 16 63 74 15.5 16 123 4
116015.0600 18 63 74 15.5 16 123 4
116015.0700 20 75 90 19.5 20 141 4
116015.0800 25 90 109 24 25 166 6
