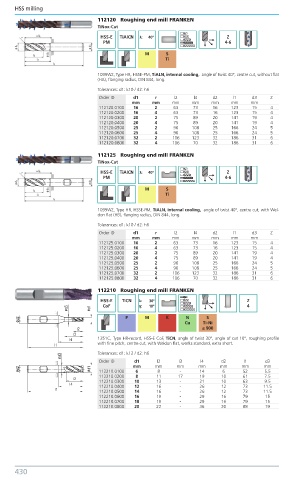

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
112120 Roughing end mill FRANKEN
TiNox-Cut
HSS-E TiAICN λ: 40º Z
PM 4-6
M S
Ti

1099WZ, Type HR, HSSE-PM, TiALN, internal cooling, angle of twist 40°, centre cut, without flat
(HA), flanging radius, DIN 844, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 r l2 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
112120.0100 16 2 63 73 16 123 15 4
112120.0200 16 4 63 73 16 123 15 4
112120.0300 20 2 75 89 20 141 19 4
112120.0400 20 4 75 89 20 141 19 4
112120.0500 25 2 90 108 25 166 24 5
112120.0600 25 4 90 108 25 166 24 5
112120.0700 32 2 106 123 32 186 31 6
112120.0800 32 4 106 70 32 186 31 6
112125 Roughing end mill FRANKEN
TiNox-Cut
HSS-E TiAICN λ: 40º Z
PM 4-6
M S
Ti

1099WZ, Type HR, HSSE-PM, TiALN, internal cooling, angle of twist 40°, centre cut, with Wel-
don flat (HB), flanging radius, DIN 844, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 r l2 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
112125.0100 16 2 63 73 16 123 15 4
112125.0200 16 4 63 73 16 123 15 4
112125.0300 20 2 75 89 20 141 19 4
112125.0400 20 4 75 89 20 141 19 4
112125.0500 25 2 90 108 25 166 24 5
112125.0600 25 4 90 108 25 166 24 5
112125.0700 32 2 106 123 32 186 31 6
112125.0800 32 4 106 70 32 186 31 6

112210 Roughing end mill FRANKEN
HSS-E TiCN λ: 30º Z
CoF γ: 10º 4
P M K N S
Cu Ti-Ni
≤ 900
1351C, Type HR-record, HSS-E CoF, TiCN, angle of twist 30°, angle of cut 10°, roughing profile
with fine pitch, centre cut, with Weldon flat, works standard, extra short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
112210.0100 6 8 - 14 6 52 5.5
112210.0200 8 11 17 19 10 61 7.5
112210.0300 10 13 - 21 10 63 9.5
112210.0400 12 16 - 26 12 73 11.5
112210.0500 14 16 - 26 12 73 11.5
112210.0600 16 19 - 29 16 79 15
112210.0700 18 19 - 29 16 79 15
112210.0800 20 22 - 36 20 88 19
