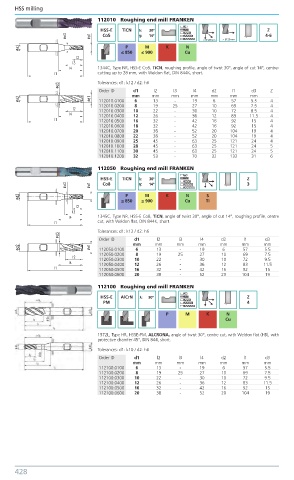

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
112010 Roughing end mill FRANKEN

HSS-E TiCN λ: 30º Z
Co5 γ: 14º 4-6
< Ø 28mm > Ø 29mm
P M K N
≤ 850 ≤ 900 Cu

1344C, Type NR, HSS-E Co5, TiCN, roughing profile, angle of twist 30°, angle of cut 14°, centre-
cutting up to 28 mm, with Weldon flat, DIN 844K, short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
112010.0100 6 13 - 19 6 57 5.5 4
112010.0200 8 19 25 27 10 69 7.5 4
112010.0300 10 22 - 30 10 72 8.5 4
112010.0400 12 26 - 36 12 83 11.5 4
112010.0500 16 32 - 42 16 92 15 4
112010.0600 18 32 - 42 16 92 15 4
112010.0700 20 38 - 52 20 104 19 4
112010.0800 22 38 - 52 20 104 19 4
112010.0900 25 45 - 63 25 121 24 4
112010.1000 28 45 - 63 25 121 24 5
112010.1100 30 45 - 63 25 121 24 5
112010.1200 32 53 - 70 32 133 31 6
112050 Roughing end mill FRANKEN
HSS-E TiCN λ: 30º Z
Co8 γ: 14º 3

P M K N S
≤ 850 ≤ 900 Cu Ti

1345C, Type NR, HSS-E Co8, TiCN, angle of twist 30°, angle of cut 14°, roughing profile, centre
cut, with Weldon flat, DIN 844K, short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
112050.0100 6 13 - 19 6 57 5.5
112050.0200 8 19 25 27 10 69 7.5
112050.0300 10 22 - 30 10 72 9.5
112050.0400 12 26 - 36 12 83 11.5
112050.0500 16 32 - 42 16 92 15
112050.0600 20 38 - 52 20 104 19
112100 Roughing end mill FRANKEN
HSS-E AlCrN λ: 30º Z
PM 4
P M K N
Cu

1572L, Type HR, HSSE-PM, ALCRONA, angle of twist 30°, centre cut, with Weldon flat (HB), with
protective chamfer 45°, DIN 844, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
112100.0100 6 13 - 19 6 57 5.5
112100.0200 8 19 25 27 10 69 7.5
112100.0300 10 22 - 30 10 72 9.5
112100.0400 12 26 - 36 12 83 11.5
112100.0500 16 32 - 42 16 92 15
112100.0600 20 38 - 52 20 104 19
