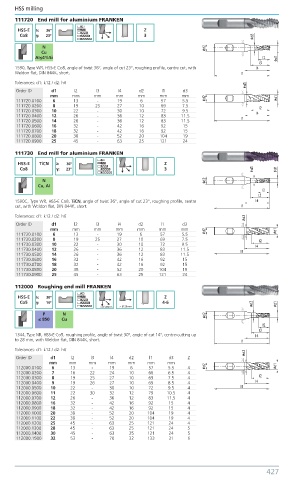

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
111720 End mill for aluminium FRANKEN

HSS-E λ: 36º Z
Co8 γ: 23º 3
N
Cu
AI≤4%Si
1590, Type WR, HSS-E Co8, angle of twist 36°, angle of cut 23°, roughing profile, centre cut, with
Weldon flat, DIN 844K, short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
111720.0100 6 13 - 19 6 57 5.5
111720.0200 8 19 25 27 10 69 7.5
111720.0300 10 22 - 30 10 72 9.5
111720.0400 12 26 - 36 12 83 11.5
111720.0500 14 26 - 36 12 83 11.5
111720.0600 16 32 - 42 16 92 15
111720.0700 18 32 - 42 16 92 15
111720.0800 20 38 - 52 20 104 19
111720.0900 25 45 - 63 25 121 24
111730 End mill for aluminium FRANKEN
HSS-E TiCN λ: 36º Z
Co8 γ: 23º 3

N
Cu, AI

1590C, Type WR, HSS-E Co8, TiCN, angle of twist 36°, angle of cut 23°, roughing profile, centre
cut, with Weldon flat, DIN 844K, short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm
111730.0100 6 13 - 19 6 57 5.5
111730.0200 8 19 25 27 10 69 7.5
111730.0300 10 22 - 30 10 72 9.5
111730.0400 12 26 - 36 12 83 11.5
111730.0500 14 26 - 36 12 83 11.5
111730.0600 16 32 - 42 16 92 15
111730.0700 18 32 - 42 16 92 15
111730.0800 20 38 - 52 20 104 19
111730.0900 25 45 - 63 25 121 24
112000 Roughing end mill FRANKEN
HSS-E λ: 30º Z
Co5 γ: 14º 4-6
< Ø 28mm > Ø 29mm
P N
≤ 850 Cu

1344, Type NR, HSS-E Co5, roughing profile, angle of twist 30°, angle of cut 14°, centre-cutting up
to 28 mm, with Weldon flat, DIN 844K, short.
Tolerances: d1: k12 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
112000.0100 6 13 - 19 6 57 5.5 4
112000.0200 7 16 22 24 10 66 6.5 4
112000.0300 8 19 25 27 10 69 7.5 4
112000.0400 9 19 26 27 10 69 8.5 4
112000.0500 10 22 - 30 10 72 9.5 4
112000.0600 11 22 30 32 12 79 10.5 4
112000.0700 12 26 - 36 12 83 11.5 4
112000.0800 16 32 - 42 16 92 15 4
112000.0900 18 32 - 42 16 92 15 4
112000.1000 20 38 - 52 20 104 19 4
112000.1100 22 38 - 52 20 104 19 4
112000.1200 25 45 - 63 25 121 24 4
112000.1300 28 45 - 63 25 121 24 5
112000.1400 30 45 - 63 25 121 24 5
112000.1500 32 53 - 70 32 133 31 6

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 427
