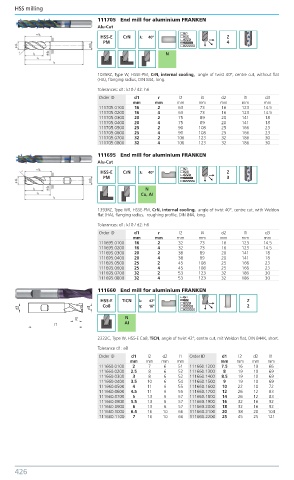

Page 435 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
111705 End mill for aluminium FRANKEN
Alu-Cut
HSS-E CrN λ: 40º Z
PM 4
N

1035RZ, Type W, HSSE-PM, CrN, internal cooling, angle of twist 40°, centre cut, without flat
(HA), flanging radius, DIN 844, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 r l2 l4 d2 l1 d3
mm mm mm mm mm mm mm
111705.0100 16 2 63 73 16 123 14.5
111705.0200 16 4 63 73 16 123 14.5
111705.0300 20 2 75 89 20 141 18
111705.0400 20 4 75 89 20 141 18
111705.0500 25 2 90 108 25 166 23
111705.0600 25 4 90 108 25 166 23
111705.0700 32 2 106 123 32 186 30
111705.0800 32 4 106 123 32 186 30
111695 End mill for aluminium FRANKEN
Alu-Cut
HSS-E CrN λ: 40º Z
PM 3
N
Cu, AI

1393RZ, Type WR, HSSE-PM, CrN, internal cooling, angle of twist 40°, centre cut, with Weldon
flat (HA), flanging radius, roughing profile, DIN 844, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 r l2 l4 d2 l1 d3
mm mm mm mm mm mm mm
111695.0100 16 2 32 73 16 123 14.5
111695.0200 16 4 32 73 16 123 14.5
111695.0300 20 2 38 89 20 141 18
111695.0400 20 4 38 89 20 141 18
111695.0500 25 2 45 108 25 166 23
111695.0600 25 4 45 108 25 166 23
111695.0700 32 2 53 123 32 186 30
111695.0800 32 4 53 123 32 186 30

111660 End mill for aluminium FRANKEN
HSS-E TiCN λ: 42º Z
Co8 γ: 16º 2
N
AI

2322C, Type W, HSS-E Co8, TiCN, angle of twist 42°, centre cut, mit Weldon flat, DIN 844K, short.
Tolerance d1: e8
Order ID d1 l2 d2 l1 Order ID d1 l2 d2 l1
mm mm mm mm mm mm mm mm
111660.0100 2 7 6 51 111660.1200 7.5 16 10 66
111660.0200 2.5 8 6 52 111660.1300 8 19 10 69
111660.0300 3 8 6 52 111660.1400 8.5 19 10 69
111660.0400 3.5 10 6 54 111660.1500 9 19 10 69
111660.0500 4 11 6 55 111660.1600 10 22 10 72
111660.0600 4.5 11 6 55 111660.1700 12 26 12 83
111660.0700 5 13 6 57 111660.1800 14 26 12 83
111660.0800 5.5 13 6 57 111660.1900 16 32 16 92
111660.0900 6 13 6 57 111660.2000 18 32 16 92
111660.1000 6.5 16 10 66 111660.2100 20 38 20 104
111660.1100 7 16 10 66 111660.2200 25 45 25 121

426 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
