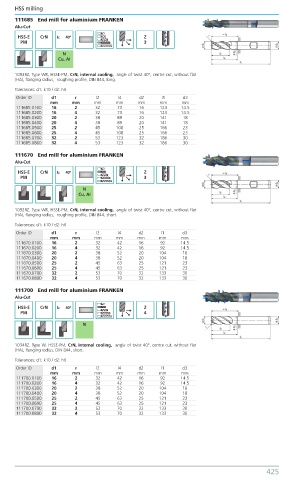

P. 434

HSS milling                          Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      111685   End mill for aluminium FRANKEN
      Alu-Cut
       HSS-E  CrN  λ:      40º                 Z
        PM                                     3
                     N
                    Cu, AI

      1093RZ, Type WR, HSSE-PM, CrN, internal cooling,  angle of twist 40°, centre cut, without flat
      (HA), flanging radius,  roughing profile, DIN 844, long.
      Tolerances: d1: k10 / d2: h6
      Order ID    d1     r      l2     l4     d2     l1     d3
                 mm     mm     mm     mm     mm     mm      mm
      111685.0100  16    2      32     73     16    123    14.5
      111685.0200  16    4      32     73     16    123    14.5
      111685.0300  20    2      38     89     20    141     18
      111685.0400  20    4      38     89     20    141     18
      111685.0500  25    2      45    108     25    166     23
      111685.0600  25    4      45    108     25    166     23
      111685.0700  32    2      53    123     32    186     30
      111685.0800  32    4      53    123     32    186     30
      111670   End mill for aluminium FRANKEN
      Alu-Cut
       HSS-E  CrN  λ:      40º                 Z
        PM                                     3
                            N
                          Cu, AI


      1092RZ, Type WR, HSSE-PM, CrN, internal cooling,  angle of twist 40°, centre cut, without flat
      (HA), flanging radius,  roughing profile, DIN 844, short.
      Tolerances: d1: k10 / d2: h6
      Order ID    d1     r      l2     l4     d2     l1     d3
                 mm     mm     mm     mm     mm     mm     mm
      111670.0100  16    2      32     42     16     92    14.5
      111670.0200  16    4      32     42     16     92    14.5
      111670.0300  20    2      38     52     20    104     18
      111670.0400  20    4      38     52     20    104     18
      111670.0500  25    2      45     63     25    121     23
      111670.0600  25    4      45     63     25    121     23
      111670.0700  32    2      53     70     32    133     30
      111670.0800  32    4      53     70     32    133     30

      111700   End mill for aluminium FRANKEN
      Alu-Cut
       HSS-E  CrN  λ:      40º                 Z
        PM                                     4

                            N


      1034RZ, Type W, HSSE-PM, CrN, internal cooling,  angle of twist 40°, centre cut, without flat
      (HA), flanging radius, DIN 844, short.
      Tolerances: d1: k10 / d2: h6
      Order ID    d1     r      l2     l4     d2     l1     d3
                 mm     mm     mm     mm     mm     mm     mm
      111700.0100  16    2      32     42     16     92    14.5
      111700.0200  16    4      32     42     16     92    14.5
      111700.0300  20    2      38     52     20    104     18
      111700.0400  20    4      38     52     20    104     18
      111700.0500  25    2      45     63     25    121     23
      111700.0600  25    4      45     63     25    121     23
      111700.0700  32    2      53     70     32    133     30
      111700.0800  32    4      53     70     32    133     30









      Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch  425
