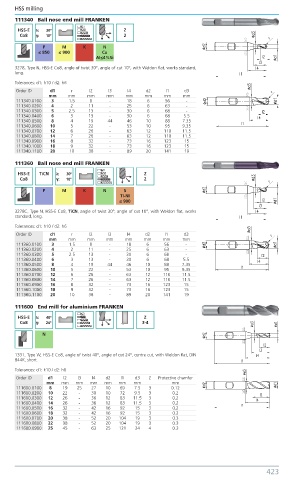

Page 432 - Benma | Blue book 5.0

HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
111340 Ball nose end mill FRANKEN

HSS-E λ: 30º Z
Co8 γ: 10º 2
P M K N
≤ 850 ≤ 900 Cu
AI≤4%Si
3278, Type N, HSS-E Co8, angle of twist 30°, angle of cut 10°, with Weldon flat, works standard,
long.
Tolerances: d1: h10 / d2: h6
Order ID d1 r l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm mm
111340.0100 3 1.5 8 - 18 6 56 -
111340.0200 4 2 11 - 25 6 63 -
111340.0300 5 2.5 13 - 30 6 68 -
111340.0400 6 3 13 - 30 6 68 5.5
111340.0500 8 4 19 44 46 10 88 7.35
111340.0600 10 5 22 - 53 10 95 9.35
111340.0700 12 6 26 - 63 12 110 11.5
111340.0800 14 7 26 - 63 12 110 11.5
111340.0900 16 8 32 - 73 16 123 15
111340.1000 18 9 32 - 73 16 123 15
111340.1100 20 10 38 - 89 20 141 19
111360 Ball nose end mill FRANKEN
HSS-E TiCN λ: 30º Z
Co8 γ: 10º 2

P M K N S
Ti-Ni
≤ 900
3278C, Type N, HSS-E Co8, TiCN, angle of twist 30°, angle of cut 10°, with Weldon flat, works
standard, long.
Tolerances: d1: h10 / d2: h6
Order ID d1 r l2 l3 l4 d2 l1 d3
mm mm mm mm mm mm mm mm
111360.0100 3 1.5 8 - 18 6 56 -
111360.0200 4 2 11 - 25 6 63 -
111360.0300 5 2.5 13 - 30 6 68 -
111360.0400 6 3 13 - 30 6 68 5.5
111360.0500 8 4 19 44 46 10 88 7.35
111360.0600 10 5 22 - 53 10 95 9.35
111360.0700 12 6 26 - 63 12 110 11.5
111360.0800 14 7 26 - 63 12 110 11.5
111360.0900 16 8 32 - 73 16 123 15
111360.1000 18 9 32 - 73 16 123 15
111360.1100 20 10 38 - 89 20 141 19
111600 End mill for aluminium FRANKEN
HSS-E λ: 40º Z
Co8 γ: 24º 3-4
N

1331, Type W, HSS-E Co8, angle of twist 40°, angle of cut 24°, centre cut, with Weldon flat, DIN
844K, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z Protective chamfer
mm mm mm mm mm mm mm mm
111600.0100 8 19 25 27 10 69 7.5 3 0.12
111600.0200 10 22 - 30 10 72 9.5 3 0.2
111600.0300 12 26 - 36 12 83 11.5 3 0.2
111600.0400 14 26 - 36 12 83 11.5 3 0.2
111600.0500 16 32 - 42 16 92 15 3 0.2
111600.0600 18 32 - 42 16 92 15 3 0.2
111600.0700 20 38 - 52 20 104 19 3 0.3
111600.0800 22 38 - 52 20 104 19 3 0.3
111600.0900 25 45 - 63 25 121 24 4 0.3

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 423
