HSS milling Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

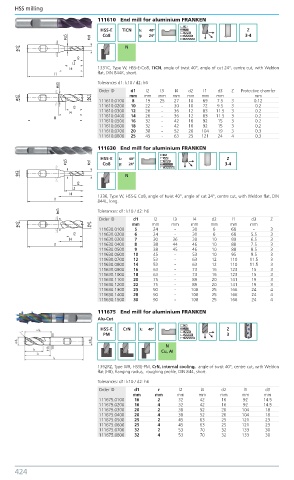

111610 End mill for aluminium FRANKEN

HSS-E TiCN λ: 40º Z
Co8 γ: 24º 3-4
N

1331C, Type W, HSS-E-Co8, TiCN, angle of twist 40°, angle of cut 24°, centre cut, with Weldon
flat, DIN 844K, short.
Tolerances d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z Protective chamfer
mm mm mm mm mm mm mm mm
111610.0100 8 19 25 27 10 69 7.5 3 0.12
111610.0200 10 22 - 30 10 72 9.5 3 0.2
111610.0300 12 26 - 36 12 83 11.5 3 0.2
111610.0400 14 26 - 36 12 83 11.5 3 0.2
111610.0500 16 32 - 42 16 92 15 3 0.2
111610.0600 18 32 - 42 16 92 15 3 0.2
111610.0700 20 38 - 52 20 104 19 3 0.3
111610.0800 25 45 - 63 25 121 24 4 0.3
111630 End mill for aluminium FRANKEN
HSS-E λ: 40º Z
Co8 γ: 24º 3-4

N

1336, Type W, HSS-E Co8, angle of twist 40°, angle of cut 24°, centre cut, with Weldon flat, DIN
844L, long.
Tolerances: d1: k10 / d2: h6
Order ID d1 l2 l3 l4 d2 l1 d3 Z
mm mm mm mm mm mm mm
111630.0100 5 24 - 30 6 68 - 3
111630.0200 6 24 - 30 6 68 5.5 3
111630.0300 7 30 36 38 10 80 6.5 3
111630.0400 8 38 44 46 10 88 7.5 3
111630.0500 9 38 45 46 10 88 8.5 3
111630.0600 10 45 - 53 10 95 9.5 3
111630.0700 12 53 - 63 12 110 11.5 3
111630.0800 14 53 - 63 12 110 11.5 3
111630.0900 16 63 - 73 16 123 15 3
111630.1000 18 63 - 73 16 123 15 3
111630.1100 20 75 - 89 20 141 19 3
111630.1200 22 75 - 89 20 141 19 3
111630.1300 25 90 - 108 25 166 24 4
111630.1400 28 90 - 108 25 166 24 4
111630.1500 30 90 - 108 25 166 24 4
111675 End mill for aluminium FRANKEN
Alu-Cut
HSS-E CrN λ: 40º Z
PM 3
N
Cu, AI

1392RZ, Type WR, HSSE-PM, CrN, internal cooling, angle of twist 40°, centre cut, with Weldon
flat (HB), flanging radius, roughing profile, DIN 844, short.
Tolerances: d1: k10 / d2: h6
Order ID d1 r l2 l4 d2 l1 d3
mm mm mm mm mm mm mm
111675.0100 16 2 32 42 16 92 14.5
111675.0200 16 4 32 42 16 92 14.5
111675.0300 20 2 38 52 20 104 18
111675.0400 20 4 38 52 20 104 18
111675.0500 25 2 45 63 25 121 23
111675.0600 25 4 45 63 25 121 23
111675.0700 32 2 53 70 32 133 30
111675.0800 32 4 53 70 32 133 30

424 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
