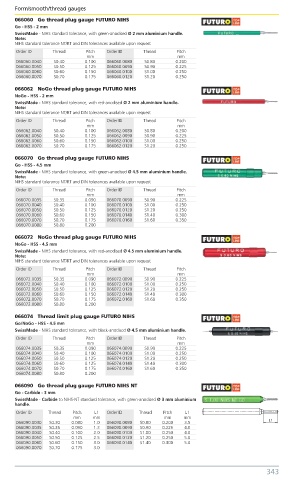

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
066060 Go thread plug gauge FUTURO NIHS
Go - HSS - 2 mm
SwissMade - NIHS standard tolerance, with green-anodised Ø 2 mm aluminium handle.
Note:
NIHS standard tolerance NT/RT and DIN tolerances available upon request
Order ID Thread Pitch Order ID Thread Pitch
mm mm
066060.0040 S0.40 0.100 066060.0080 S0.80 0.200
066060.0050 S0.50 0.125 066060.0090 S0.90 0.225
066060.0060 S0.60 0.150 066060.0100 S1.00 0.250
066060.0070 S0.70 0.175 066060.0120 S1.20 0.250
066062 NoGo thread plug gauge FUTURO NIHS
NoGo - HSS - 2 mm
SwissMade - NIHS standard tolerance, with red-anodised Ø 2 mm aluminium handle.
Note:
NIHS standard tolerance NT/RT and DIN tolerances available upon request
Order ID Thread Pitch Order ID Thread Pitch
mm mm
066062.0040 S0.40 0.100 066062.0080 S0.80 0.200
066062.0050 S0.50 0.125 066062.0090 S0.90 0.225
066062.0060 S0.60 0.150 066062.0100 S1.00 0.250
066062.0070 S0.70 0.175 066062.0120 S1.20 0.250
066070 Go thread plug gauge FUTURO NIHS
Go - HSS - 4.5 mm
SwissMade - NIHS standard tolerance, with green-anodised Ø 4.5 mm aluminium handle.
Note:
NIHS standard tolerance NT/RT and DIN tolerances available upon request
Order ID Thread Pitch Order ID Thread Pitch
mm mm
066070.0035 S0.35 0.090 066070.0090 S0.90 0.225
066070.0040 S0.40 0.100 066070.0100 S1.00 0.250
066070.0050 S0.50 0.125 066070.0120 S1.20 0.250
066070.0060 S0.60 0.150 066070.0140 S1.40 0.300
066070.0070 S0.70 0.175 066070.0160 S1.60 0.350
066070.0080 S0.80 0.200
066072 NoGo thread plug gauge FUTURO NIHS
NoGo - HSS - 4.5 mm
SwissMade - NIHS standard tolerance, with red-anodised Ø 4.5 mm aluminium handle.
Note:
NIHS standard tolerance NT/RT and DIN tolerances available upon request
Order ID Thread Pitch Order ID Thread Pitch
mm mm
066072.0035 S0.35 0.090 066072.0090 S0.90 0.225
066072.0040 S0.40 0.100 066072.0100 S1.00 0.250
066072.0050 S0.50 0.125 066072.0120 S1.20 0.250
066072.0060 S0.60 0.150 066072.0140 S1.40 0.300
066072.0070 S0.70 0.175 066072.0160 S1.60 0.350
066072.0080 S0.80 0.200
066074 Thread limit plug gauge FUTURO NIHS
Go/NoGo - HSS - 4.5 mm
SwissMade - NIHS standard tolerance, with black-anodised Ø 4.5 mm aluminium handle.
Order ID Thread Pitch Order ID Thread Pitch
mm mm
066074.0035 S0.35 0.090 066074.0090 S0.90 0.225
066074.0040 S0.40 0.100 066074.0100 S1.00 0.250
066074.0050 S0.50 0.125 066074.0120 S1.20 0.250
066074.0060 S0.60 0.125 066074.0140 S1.40 0.300
066074.0070 S0.70 0.175 066074.0160 S1.60 0.350
066074.0080 S0.80 0.200
066090 Go thread plug gauge FUTURO NIHS NT
Go - Carbide - 3 mm
SwissMade - Carbide to NIHS-NT standard tolerance, with green-anodised Ø 3 mm aluminium
handle.
Order ID Thread Pitch L1 Order ID Thread Pitch L1
mm mm mm mm
066090.0030 S0.30 0.080 1.0 066090.0080 S0.80 0.200 3.5
066090.0035 S0.35 0.090 1.3 066090.0090 S0.90 0.225 4.0
066090.0040 S0.40 0.100 2.0 066090.0100 S1.00 0.250 4.0
066090.0050 S0.50 0.125 2.5 066090.0120 S1.20 0.250 5.0
066090.0060 S0.60 0.150 3.0 066090.0140 S1.40 0.300 5.0
066090.0070 S0.70 0.175 3.0

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 343
