Physical measuring instruments Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

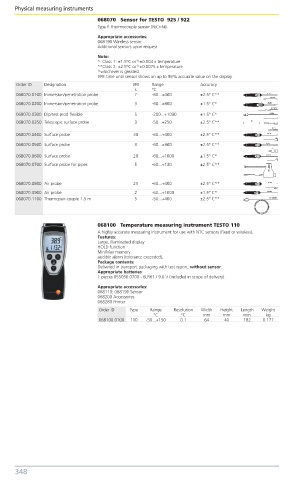

068070 Sensor for TESTO 925 / 922
Type K thermocouple sensor (NiCr-Ni).
Appropriate accessories:
068190 Wireless sensor
Additional sensors upon request
Note:
1)
* Class 1: ±1.5°C or ±0.004 x temperature
1)
**Class 2: ±2.5°C or ±0.0075 x temperature
1) whichever is greatest
t99: time until sensor shows an up to 99% accurate value on the display.
Order ID Designation t99 Range Accuracy
s °C
068070.0100 Immersion/penetration probe 7 -60...+400 ±2.5° C**
068070.0200 Immersion/penetration probe 3 -60...+800 ±1.5° C*
068070.0300 Dip/test prod flexible 5 -200...+1000 ±1.5° C*
068070.0350 Telescopic surface probe 3 -50...+250 ±2.5° C**
068070.0400 Surface probe 30 -60...+400 ±2.5° C**
068070.0500 Surface probe 3 -60...+300 ±2.5° C**

068070.0600 Surface probe 20 -60...+1000 ±1.5° C*
068070.0700 Surface probe for pipes 5 -60...+130 ±2.5° C**

068070.0800 Air probe 25 -60...+400 ±2.5° C**
068070.0900 Air probe 2 -60...+1000 ±1.5° C*
068070.1100 Thermopair-couple 1.5 m 5 -50...+400 ±2.5° C**

068100 Temperature measuring instrument TESTO 110
A highly accurate measuring instrument for use with NTC sensors (fixed or wireless).
Features:
Large, illuminated display
HOLD function
Min/Max memory
audible alarm (tolerance exceeded).
Package contents:
Delivered in transport packaging with test report, without sensor.
Appropriate batteries:
1 pieces 055050.0700 - 6LR61 / 9.0 V (included in scope of delivery).
Appropriate accessories:
068110; 068190 Sensor
068200 Accessories
068280 Printer
Order ID Type Range Resolution Width Height Length Weight
°C °C mm mm mm kg
068100.0100 110 -50...+150 0.1 64 40 182 0.171
