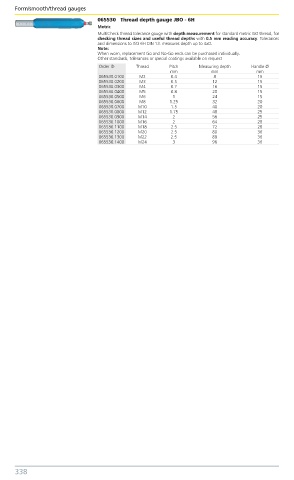

065530 Thread depth gauge JBO - 6H
Metric
MultiCheck thread tolerance gauge with depth measurement for standard metric ISO thread, for
checking thread sizes and useful thread depths with 0.5 mm reading accuracy. Tolerances
and dimensions to ISO 6H DIN 13. measures depth up to 4xD.
Note:
When worn, replacement Go and No-Go ends can be purchased individually.
Other standards, tolerances or special coatings available on request
Order ID Thread Pitch Measuring depth Handle Ø
mm mm mm
065530.0100 M2 0.4 8 15
065530.0200 M3 0.5 12 15
065530.0300 M4 0.7 16 15
065530.0400 M5 0.8 20 15
065530.0500 M6 1 24 15
065530.0600 M8 1.25 32 20
065530.0700 M10 1.5 40 20
065530.0800 M12 1.75 48 25
065530.0900 M14 2 56 25
065530.1000 M16 2 64 28
065530.1100 M18 2.5 72 28
065530.1200 M20 2.5 80 36
065530.1300 M22 2.5 88 36
065530.1400 M24 3 96 36
