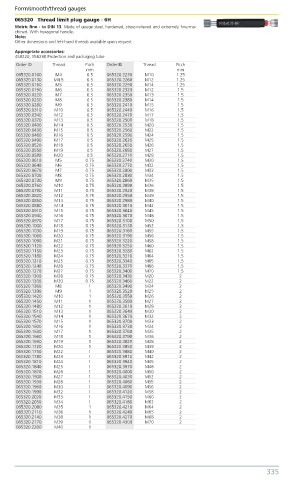

Page 341 - Benma | Blue book 5.0

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
065320 Thread limit plug gauge - 6H
Metric fine - to DIN 13. Made of gauge steel, hardened, stress-relieved and extremely fine-ma-
chined. With hexagonal handle.
Note:
Other dimensions and left-hand threads available upon request
Appropriate accessories:
458220; 558230 Protection and packaging tube
Order ID Thread Pitch Order ID Thread Pitch
mm mm
065320.0100 M4 0.5 065320.2230 M10 1.25
065320.0130 M4.5 0.5 065320.2260 M12 1.25
065320.0160 M5 0.5 065320.2290 M14 1.25
065320.0190 M6 0.5 065320.2320 M12 1.5
065320.0220 M7 0.5 065320.2350 M13 1.5
065320.0250 M8 0.5 065320.2380 M14 1.5
065320.0280 M9 0.5 065320.2410 M15 1.5
065320.0310 M10 0.5 065320.2440 M16 1.5
065320.0340 M12 0.5 065320.2470 M17 1.5
065320.0370 M13 0.5 065320.2500 M18 1.5
065320.0400 M14 0.5 065320.2530 M20 1.5
065320.0430 M15 0.5 065320.2560 M22 1.5
065320.0460 M16 0.5 065320.2590 M24 1.5
065320.0490 M17 0.5 065320.2620 M25 1.5
065320.0520 M18 0.5 065320.2650 M26 1.5
065320.0550 M19 0.5 065320.2680 M27 1.5
065320.0580 M20 0.5 065320.2710 M28 1.5
065320.0610 M5 0.75 065320.2740 M30 1.5
065320.0640 M6 0.75 065320.2770 M32 1.5
065320.0670 M7 0.75 065320.2800 M33 1.5
065320.0700 M8 0.75 065320.2830 M34 1.5
065320.0730 M9 0.75 065320.2860 M35 1.5
065320.0760 M10 0.75 065320.2890 M36 1.5
065320.0790 M11 0.75 065320.2920 M38 1.5
065320.0820 M12 0.75 065320.2950 M39 1.5
065320.0850 M13 0.75 065320.2980 M40 1.5
065320.0880 M14 0.75 065320.3010 M42 1.5
065320.0910 M15 0.75 065320.3040 M45 1.5
065320.0940 M16 0.75 065320.3070 M48 1.5
065320.0970 M17 0.75 065320.3100 M50 1.5
065320.1000 M18 0.75 065320.3130 M52 1.5
065320.1030 M19 0.75 065320.3160 M55 1.5
065320.1060 M20 0.75 065320.3190 M56 1.5
065320.1090 M21 0.75 065320.3220 M58 1.5
065320.1120 M22 0.75 065320.3250 M60 1.5
065320.1150 M23 0.75 065320.3280 M62 1.5
065320.1180 M24 0.75 065320.3310 M64 1.5
065320.1210 M25 0.75 065320.3340 M65 1.5
065320.1240 M26 0.75 065320.3370 M68 1.5
065320.1270 M27 0.75 065320.3400 M70 1.5
065320.1300 M28 0.75 065320.3430 M20 2
065320.1330 M30 0.75 065320.3460 M22 2
065320.1360 M8 1 065320.3490 M24 2
065320.1390 M9 1 065320.3520 M25 2
065320.1420 M10 1 065320.3550 M26 2
065320.1450 M11 1 065320.3580 M27 2
065320.1480 M12 1 065320.3610 M28 2
065320.1510 M13 1 065320.3640 M30 2
065320.1540 M14 1 065320.3670 M32 2
065320.1570 M15 1 065320.3700 M33 2
065320.1600 M16 1 065320.3730 M34 2
065320.1630 M17 1 065320.3760 M35 2
065320.1660 M18 1 065320.3790 M36 2
065320.1690 M19 1 065320.3820 M38 2
065320.1720 M20 1 065320.3850 M39 2
065320.1750 M22 1 065320.3880 M40 2
065320.1780 M23 1 065320.3910 M42 2
065320.1810 M24 1 065320.3940 M45 2
065320.1840 M25 1 065320.3970 M48 2
065320.1870 M26 1 065320.4000 M50 2
065320.1900 M27 1 065320.4030 M52 2
065320.1930 M28 1 065320.4060 M55 2
065320.1960 M30 1 065320.4090 M56 2
065320.1990 M32 1 065320.4120 M58 2
065320.2020 M33 1 065320.4150 M60 2
065320.2050 M34 1 065320.4180 M62 2
065320.2080 M35 1 065320.4210 M64 2
065320.2110 M36 1 065320.4240 M65 2
065320.2140 M38 1 065320.4270 M68 2
065320.2170 M39 1 065320.4300 M70 2
065320.2200 M40 1
