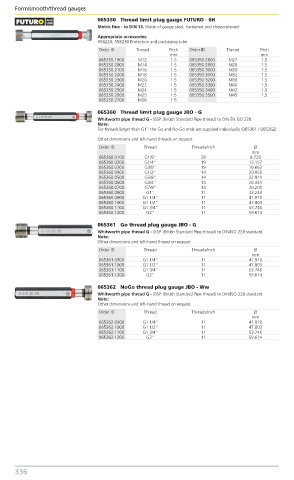

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
065350 Thread limit plug gauge FUTURO - 6H
Metric fine - to DIN 13. Made of gauge steel, hardened and stress-relieved.
Appropriate accessories:
458220; 558230 Protection and packaging tube
Order ID Thread Pitch Order ID Thread Pitch
mm mm
065350.1900 M12 1.5 065350.2800 M27 1.5
065350.2000 M14 1.5 065350.2900 M28 1.5
065350.2100 M16 1.5 065350.3000 M30 1.5
065350.2200 M18 1.5 065350.3100 M32 1.5
065350.2300 M20 1.5 065350.3200 M36 1.5
065350.2400 M22 1.5 065350.3300 M40 1.5
065350.2500 M24 1.5 065350.3400 M42 1.5
065350.2600 M25 1.5 065350.3500 M45 1.5
065350.2700 M26 1.5
065360 Thread limit plug gauge JBO - G
Whitworth pipe thread G - (BSP: British Standard Pipe thread) to DIN EN ISO 228.
Note:
For threads larger than G1“ the Go and No-Go ends are supplied individually (065361 / 065362)
Other dimensions and left-hand threads on request
Order ID Thread Threads/inch Ø
mm
065360.0100 G1/8“ 28 9.728
065360.0200 G1/4“ 19 13.157
065360.0300 G3/8“ 19 16.662
065360.0400 G1/2“ 14 20.955
065360.0500 G5/8“ 14 22.911
065360.0600 G3/4“ 14 26.441
065360.0700 G7/8“ 14 30.201
065360.0800 G1“ 11 33.249
065360.0900 G1 1/4“ 11 41.910
065360.1000 G1 1/2“ 11 47.803
065360.1100 G1 3/4“ 11 53.746
065360.1200 G2“ 11 59.614
065361 Go thread plug gauge JBO - G
Whitworth pipe thread G - (BSP: British Standard Pipe thread) to DIN/ISO 228 standard.
Note:
Other dimensions and left-hand thread on request
Order ID Thread Threads/inch Ø
mm
065361.0900 G1 1/4“ 11 41.910
065361.1000 G1 1/2“ 11 47.803
065361.1100 G1 3/4“ 11 53.746
065361.1200 G2“ 11 59.614
065362 NoGo thread plug gauge JBO - Ww
Whitworth pipe thread G - (BSP: British Standard Pipe thread) to DIN/ISO 228 standard.
Note:
Other dimensions and left-hand thread on request
Order ID Thread Threads/inch Ø
mm
065362.0900 G1 1/4“ 11 41.910
065362.1000 G1 1/2“ 11 47.803
065362.1100 G1 3/4“ 11 53.746
065362.1200 G2“ 11 59.614
