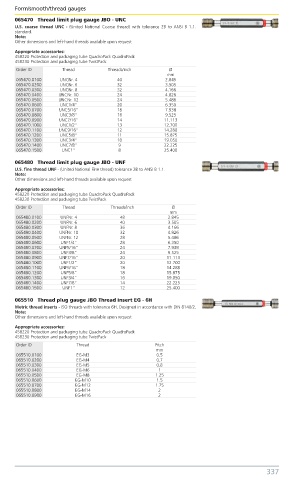

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
065470 Thread limit plug gauge JBO - UNC
U.S. coarse thread UNC - (United National Coarse thread) with tolerance 2B to ANSI B 1.1.
standard.
Note:
Other dimensions and left-hand threads available upon request
Appropriate accessories:
458220 Protection and packaging tube QuadroPack QuadroPack
458230 Protection and packaging tube TwistPack
Order ID Thread Threads/inch Ø
mm
065470.0100 UNCNr. 4 40 2.845
065470.0200 UNCNr. 6 32 3.505
065470.0300 UNCNr. 8 32 4.166
065470.0400 UNCNr. 10 24 4.826
065470.0500 UNCNr. 12 24 5.486
065470.0600 UNC1/4“ 20 6.350
065470.0700 UNC5/16“ 18 7.938
065470.0800 UNC3/8“ 16 9.525
065470.0900 UNC7/16“ 14 11.113
065470.1000 UNC1/2“ 13 12.700
065470.1100 UNC9/16“ 12 14.288
065470.1200 UNC5/8“ 11 15.875
065470.1300 UNC3/4“ 10 19.050
065470.1400 UNC7/8“ 9 22.225
065470.1500 UNC1“ 8 25.400
065480 Thread limit plug gauge JBO - UNF
U.S. fine thread UNF - (United National Fine thread) tolerance 2B to ANSI B 1.1.
Note:
Other dimensions and left-hand threads available upon request
Appropriate accessories:
458220 Protection and packaging tube QuadroPack QuadroPack
458230 Protection and packaging tube TwistPack
Order ID Thread Threads/inch Ø
mm
065480.0100 UNFNr. 4 48 2.845
065480.0200 UNFNr. 6 40 3.505
065480.0300 UNFNr. 8 36 4.166
065480.0400 UNFNr. 10 32 4.826
065480.0500 UNFNr. 12 28 5.486
065480.0600 UNF1/4“ 28 6.350
065480.0700 UNF5/16“ 24 7.938
065480.0800 UNF3/8“ 24 9.525
065480.0900 UNF7/16“ 20 11.113
065480.1000 UNF1/2“ 20 12.700
065480.1100 UNF9/16“ 18 14.288
065480.1200 UNF5/8“ 18 15.875
065480.1300 UNF3/4“ 16 19.050
065480.1400 UNF7/8“ 14 22.225
065480.1500 UNF1“ 12 25.400

065510 Thread plug gauge JBO Thread insert EG - 6H
Metric thread inserts - ISO threads with tolerance 6H. Designed in accordance with DIN 8140/2.
Note:
Other dimensions and left-hand threads available upon request
Appropriate accessories:
458220 Protection and packaging tube QuadroPack QuadroPack
458230 Protection and packaging tube TwistPack
Order ID Thread Pitch
mm
065510.0100 EG-M3 0.5
065510.0200 EG-M4 0.7
065510.0300 EG-M5 0.8
065510.0400 EG-M6 1
065510.0500 EG-M8 1.25
065510.0600 EG-M10 1.5
065510.0700 EG-M12 1.75
065510.0800 EG-M14 2
065510.0900 EG-M16 2
