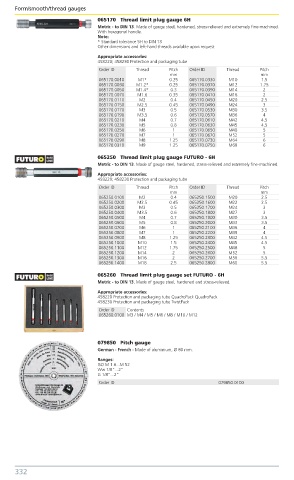

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
065170 Thread limit plug gauge 6H
Metric - to DIN 13. Made of gauge steel, hardened, stress-relieved and extremely fine-machined.
With hexagonal handle.
Note:
* Standard tolerance 5H to DIN 13
Other dimensions and left-hand threads available upon request
Appropriate accessories:
458220; 458230 Protection and packaging tube
Order ID Thread Pitch Order ID Thread Pitch
mm mm
065170.0010 M1* 0.25 065170.0330 M10 1.5
065170.0030 M1.2* 0.25 065170.0370 M12 1.75
065170.0050 M1.4* 0.3 065170.0390 M14 2
065170.0070 M1.6 0.35 065170.0410 M16 2
065170.0110 M2 0.4 065170.0450 M20 2.5
065170.0150 M2.5 0.45 065170.0490 M24 3
065170.0170 M3 0.5 065170.0530 M30 3.5
065170.0190 M3.5 0.6 065170.0570 M36 4
065170.0210 M4 0.7 065170.0610 M42 4.5
065170.0230 M5 0.8 065170.0630 M45 4.5
065170.0250 M6 1 065170.0650 M48 5
065170.0270 M7 1 065170.0670 M52 5
065170.0290 M8 1.25 065170.0730 M64 6
065170.0310 M9 1.25 065170.0750 M68 6
065250 Thread limit plug gauge FUTURO - 6H
Metric - to DIN 13. Made of gauge steel, hardened, stress-relieved and extremely fine-machined.
Appropriate accessories:
458220; 458230 Protection and packaging tube
Order ID Thread Pitch Order ID Thread Pitch
mm mm
065250.0100 M2 0.4 065250.1500 M20 2.5
065250.0200 M2.5 0.45 065250.1600 M22 2.5
065250.0300 M3 0.5 065250.1700 M24 3
065250.0400 M3.5 0.6 065250.1800 M27 3
065250.0500 M4 0.7 065250.1900 M30 3.5
065250.0600 M5 0.8 065250.2000 M33 3.5
065250.0700 M6 1 065250.2100 M36 4
065250.0800 M7 1 065250.2200 M39 4
065250.0900 M8 1.25 065250.2300 M42 4.5
065250.1000 M10 1.5 065250.2400 M45 4.5
065250.1100 M12 1.75 065250.2500 M48 5
065250.1200 M14 2 065250.2600 M52 5
065250.1300 M16 2 065250.2700 M56 5.5
065250.1400 M18 2.5 065250.2800 M60 5.5

065260 Thread limit plug gauge set FUTURO - 6H
Metric - to DIN 13. Made of gauge steel, hardened and stress-relieved.
Appropriate accessories:
458220 Protection and packaging tube QuadroPack QuadroPack
458230 Protection and packaging tube TwistPack
Order ID Contents
065260.0100 M3 / M4 / M5 / M6 / M8 / M10 / M12

079850 Pitch gauge
German - French - Made of aluminium, Ø 80 mm.
Ranges:
ISO M 1.6...M 52
Ww 1/8“...2“
G 1/8“...2“
Order ID 079850.0100
