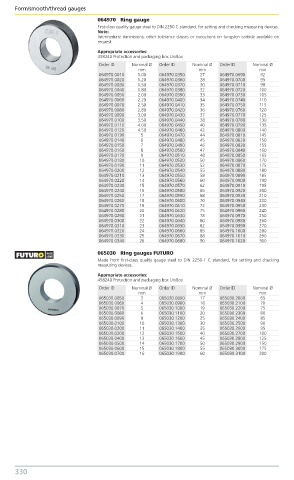

Page 336 - Benma | Blue book 5.0

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
064970 Ring gauge
First-class quality gauge steel to DIN 2250 C standard, for setting and checking measuring devices.
Note:
Intermediate dimensions, other tolerance classes or executions on tungsten carbide available on
request
Appropriate accessories:
458240 Protection and packaging box UniBox
Order ID Nominal Ø Order ID Nominal Ø Order ID Nominal Ø
mm mm mm
064970.0010 1.00 064970.0350 27 064970.0690 92
064970.0020 1.20 064970.0360 28 064970.0700 95
064970.0030 1.50 064970.0370 30 064970.0710 98
064970.0040 1.80 064970.0380 32 064970.0720 100
064970.0050 2.00 064970.0390 33 064970.0730 105
064970.0060 2.20 064970.0400 34 064970.0740 110
064970.0070 2.50 064970.0410 35 064970.0750 115
064970.0080 2.80 064970.0420 36 064970.0760 120
064970.0090 3.00 064970.0430 37 064970.0770 125
064970.0100 3.50 064970.0440 38 064970.0780 130
064970.0110 4.00 064970.0450 40 064970.0790 135
064970.0120 4.50 064970.0460 42 064970.0800 140
064970.0130 5 064970.0470 44 064970.0810 145
064970.0140 6 064970.0480 45 064970.0820 150
064970.0150 7 064970.0490 46 064970.0830 155
064970.0160 8 064970.0500 47 064970.0840 160
064970.0170 9 064970.0510 48 064970.0850 165
064970.0180 10 064970.0520 50 064970.0860 170
064970.0190 11 064970.0530 52 064970.0870 175
064970.0200 12 064970.0540 55 064970.0880 180
064970.0210 13 064970.0550 58 064970.0890 185
064970.0220 14 064970.0560 60 064970.0900 190
064970.0230 15 064970.0570 62 064970.0910 195
064970.0240 16 064970.0580 65 064970.0920 200
064970.0250 17 064970.0590 68 064970.0930 210
064970.0260 18 064970.0600 70 064970.0940 220
064970.0270 19 064970.0610 72 064970.0950 230
064970.0280 20 064970.0620 75 064970.0960 240
064970.0290 21 064970.0630 78 064970.0970 250
064970.0300 22 064970.0640 80 064970.0980 260
064970.0310 23 064970.0650 82 064970.0990 270
064970.0320 24 064970.0660 85 064970.1000 280
064970.0330 25 064970.0670 88 064970.1010 290
064970.0340 26 064970.0680 90 064970.1020 300
065030 Ring gauges FUTURO
Made from first-class quality gauge steel to DIN 2250-1 C standard, for setting and checking
measuring devices.
Appropriate accessories:
458240 Protection and packaging box UniBox
Order ID Nominal Ø Order ID Nominal Ø Order ID Nominal Ø
mm mm mm
065030.0050 3 065030.0800 17 065030.2000 65
065030.0060 4 065030.0900 18 065030.2100 70
065030.0070 5 065030.1000 19 065030.2200 75
065030.0080 6 065030.1100 20 065030.2300 80
065030.0090 8 065030.1200 25 065030.2400 85
065030.0100 10 065030.1300 30 065030.2500 90
065030.0200 11 065030.1400 35 065030.2600 95
065030.0300 12 065030.1500 40 065030.2700 100
065030.0400 13 065030.1600 45 065030.2800 125
065030.0500 14 065030.1700 50 065030.2900 150
065030.0600 15 065030.1800 55 065030.3000 175
065030.0700 16 065030.1900 60 065030.3100 200
