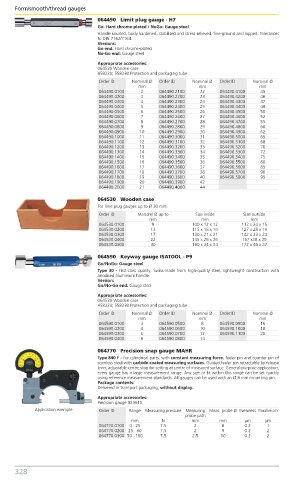

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
064490 Limit plug gauge - H7
Go: Hard chrome-plated / NoGo: Gauge steel
Handle knurled, body hardened, stabilised and stress-relieved, fine-ground and lapped. Tolerances
to DIN 7162/7164.
Versions:
Go end: Hard chrome-plated
No-Go end: Gauge steel
Appropriate accessories:
064530 Wooden case
458220; 558230 Protection and packaging tube
Order ID Nominal Ø Order ID Nominal Ø Order ID Nominal Ø
mm mm mm
064490.0100 2 064490.2100 22 064490.4100 45
064490.0200 3 064490.2200 23 064490.4200 46
064490.0300 4 064490.2300 24 064490.4300 47
064490.0400 5 064490.2400 25 064490.4400 48
064490.0500 6 064490.2500 26 064490.4500 50
064490.0600 7 064490.2600 27 064490.4600 52
064490.0700 8 064490.2700 28 064490.4700 55
064490.0800 9 064490.2800 29 064490.4800 60
064490.0900 10 064490.2900 30 064490.4900 62
064490.1000 11 064490.3000 31 064490.5000 65
064490.1100 12 064490.3100 32 064490.5100 68
064490.1200 13 064490.3200 33 064490.5200 70
064490.1300 14 064490.3300 34 064490.5300 72
064490.1400 15 064490.3400 35 064490.5400 75
064490.1500 16 064490.3500 36 064490.5500 80
064490.1600 17 064490.3600 37 064490.5600 85
064490.1700 18 064490.3700 38 064490.5700 90
064490.1800 19 064490.3800 40 064490.5800 95
064490.1900 20 064490.3900 42
064490.2000 21 064490.4000 44
064530 Wooden case
For limit plug gauges up to Ø 30 mm.
Order ID Mandrel Ø up to Size inside Size outside
mm mm mm
064530.0100 9 100 x 12 x 12 112 x 24 x 15
064530.0200 13 115 x 16 x 16 127 x 28 x 19
064530.0300 17 130 x 21 x 21 142 x 33 x 24
064530.0400 22 145 x 26 x 26 157 x38 x 29
064530.0500 30 160 x 34 x 34 172 x 46 x 37
064590 Keyway gauge ISATOOL - P9
Go/NoGo: Gauge steel
Type 30 - First-class quality, Swiss-made from high-quality steel, lightweight construction with
anodised aluminium handle.
Version:
Go/No-Go end: Gauge steel
Appropriate accessories:
064530 Wooden case
458220; 558230 Protection and packaging tube
Order ID Nominal Ø Order ID Nominal Ø Order ID Nominal Ø
mm mm mm
064590.0100 3 064590.0500 8 064590.0900 16
064590.0200 4 064590.0600 10 064590.1000 18
064590.0300 5 064590.0700 12 064590.1100 20
064590.0400 6 064590.0800 14
064770 Precision snap gauge MAHR
Type 840 F - For cylindrical parts, with constant measuring force, feeler pin and counter pin of
stainless steel with carbide-coated measuring surfaces. Guided feeler pin retractable by release
lever, adjustable centre stop for setting at centre of measured surface. General-purpose application,
every gauge has a large measurement range. Any size or fit within this range can be set quickly
using reference measurement standards. All gauges can be used with an Ø 8 mm mounting pin.
Package contents:
Delivered in transport packaging, without display.
Appropriate accessories:
Precision gauge 023610
Application exemple Order ID Range Measuring pressure Measuring Meas. probe Ø Evenness Parallelism
probe path
mm N mm mm µm µm
064770.0100 0...25 7.5 2 8 0.2 1
064770.0200 25...60 7.5 2 9 0.2 2
064770.0300 50...100 7.5 2.5 10 0.2 2
