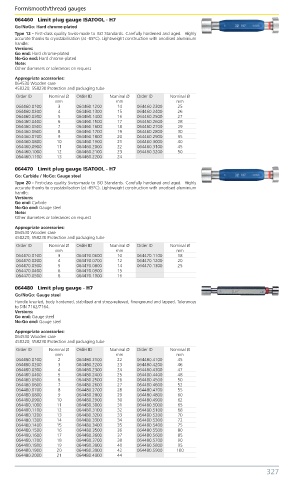

P. 333

Form/smooth/thread gauges            Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      064460   Limit plug gauge ISATOOL - H7
      Go/NoGo: Hard chrome-plated
      Type 12 - First-class quality Swiss-made to ISO Standards. Carefully hardened and aged.  Highly
      accurate thanks to cryostabilisation (at -85°C). Lightweight construction with anodised aluminium
      handle:
      Versions:
      Go end: Hard chrome-plated
      No-Go end: Hard chrome-plated
      Note:
      Other diameters or tolerances on request
      Appropriate accessories:
      064530 Wooden case
      458220; 558230 Protection and packaging tube
      Order ID   Nominal Ø  Order ID  Nominal Ø  Order ID  Nominal Ø
                   mm                 mm                  mm
      064460.0100   3     064460.1200  14    064460.2300  25
      064460.0200   4     064460.1300  15    064460.2400  26
      064460.0300   5     064460.1400  16    064460.2500  27
      064460.0400   6     064460.1500  17    064460.2600  28
      064460.0500   7     064460.1600  18    064460.2700  29
      064460.0600   8     064460.1700  19    064460.2800  30
      064460.0700   9     064460.1800  20    064460.2900  35
      064460.0800  10     064460.1900  21    064460.3000  40
      064460.0900  11     064460.2000  22    064460.3100  45
      064460.1000  12     064460.2100  23    064460.3200  50
      064460.1100  13     064460.2200  24
      064470   Limit plug gauge ISATOOL - H7
      Go: Carbide / NoGo: Gauge steel
      Type 20 - First-class quality Swiss-made to ISO Standards. Carefully hardened and aged.  Highly
      accurate thanks to cryostabilisation (at -85°C). Lightweight construction with anodised aluminium
      handle:
      Versions:
      Go end: Carbide
      No-Go end: Gauge steel
      Note:
      Other diameters or tolerances on request
      Appropriate accessories:
      064530 Wooden case
      458220; 558230 Protection and packaging tube
      Order ID   Nominal Ø  Order ID  Nominal Ø  Order ID  Nominal Ø
                   mm                 mm                  mm
      064470.0100   3     064470.0600  10    064470.1100  18
      064470.0200   4     064470.0700  12    064470.1200  20
      064470.0300   5     064470.0800  14    064470.1300  25
      064470.0400   6     064470.0900  15
      064470.0500   8     064470.1000  16
      064480   Limit plug gauge - H7
      Go/NoGo: Gauge steel
      Handle knurled, body hardened, stabilised and stress-relieved, fine-ground and lapped. Tolerances
      to DIN 7162/7164.
      Versions:
      Go end: Gauge steel
      No-Go end: Gauge steel
      Appropriate accessories:
      064530 Wooden case
      458220; 558230 Protection and packaging tube
      Order ID   Nominal Ø  Order ID  Nominal Ø  Order ID  Nominal Ø
                   mm                 mm                  mm
      064480.0100   2     064480.2100  22    064480.4100  45
      064480.0200   3     064480.2200  23    064480.4200  46
      064480.0300   4     064480.2300  24    064480.4300  47
      064480.0400   5     064480.2400  25    064480.4400  48
      064480.0500   6     064480.2500  26    064480.4500  50
      064480.0600   7     064480.2600  27    064480.4600  52
      064480.0700   8     064480.2700  28    064480.4700  55
      064480.0800   9     064480.2800  29    064480.4800  60
      064480.0900  10     064480.2900  30    064480.4900  62
      064480.1000  11     064480.3000  31    064480.5000  65
      064480.1100  12     064480.3100  32    064480.5100  68
      064480.1200  13     064480.3200  33    064480.5200  70
      064480.1300  14     064480.3300  34    064480.5300  72
      064480.1400  15     064480.3400  35    064480.5400  75
      064480.1500  16     064480.3500  36    064480.5500  80
      064480.1600  17     064480.3600  37    064480.5600  85
      064480.1700  18     064480.3700  38    064480.5700  90
      064480.1800  19     064480.3800  40    064480.5800  95
      064480.1900  20     064480.3900  42    064480.5900  100
      064480.2000  21     064480.4000  44

      Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch  327
