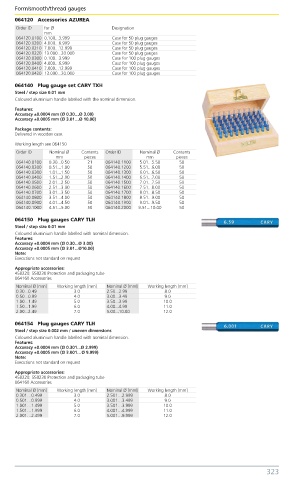

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
064120 Accessories AZUREA
Order ID for Ø Designation
mm
064120.0100 0.100...3.999 Case for 50 plug gauges
064120.0200 4.000...6.999 Case for 50 plug gauges
064120.0210 7.000...12.999 Case for 50 plug gauges
064120.0220 13.000...20.000 Case for 50 plug gauges
064120.0300 0.100...3.999 Case for 100 plug gauges
064120.0400 4.000...6.999 Case for 100 plug gauges
064120.0410 7.000...12.999 Case for 100 plug gauges
064120.0420 13.000...20.000 Case for 100 plug gauges
064140 Plug gauge set CARY TXH
Steel / step size 0.01 mm
Coloured aluminium handle labelled with the nominal dimension.
Features:
Accuracy ±0.0004 mm (Ø 0.30…Ø 3.00)
Accuracy ±0.0005 mm (Ø 3.01…Ø 10.00)
Package contents:
Delivered in wooden case.
Working length see 064150
Order ID Nominal Ø Contents Order ID Nominal Ø Contents
mm pieces mm pieces
064140.0100 0.30...0.50 21 064140.1100 5.01...5.50 50
064140.0200 0.51...1.00 50 064140.1200 5.51...6.00 50
064140.0300 1.01...1.50 50 064140.1300 6.01...6.50 50
064140.0400 1.51...2.00 50 064140.1400 6.51...7.00 50
064140.0500 2.01...2.50 50 064140.1500 7.01...7.50 50
064140.0600 2.51...3.00 50 064140.1600 7.51...8.00 50
064140.0700 3.01...3.50 50 064140.1700 8.01...8.50 50
064140.0800 3.51...4.00 50 064140.1800 8.51...9.00 50
064140.0900 4.01...4.50 50 064140.1900 9.01...9.50 50
064140.1000 4.51...5.00 50 064140.2000 9.51...10.00 50

064150 Plug gauges CARY TLH
Steel / step size 0.01 mm
Coloured aluminium handle labelled with nominal dimension.
Features:
Accuracy ±0.0004 mm (Ø 0.30...Ø 3.00)
Accuracy ±0.0005 mm (Ø 3.01...Ø10.00)
Note:
Executions not standard on request
Appropriate accessories:
458220; 558230 Protection and packaging tube
064160 Accessories
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.30...0.49 3.0 2.50...2.99 8.0
0.50...0.99 4.0 3.00...3.49 9.0
1.00...1.49 5.0 3.50...3.99 10.0
1.50...1.99 6.0 4.00...4.99 11.0
2.00...2.49 7.0 5.00...10.00 12.0
064154 Plug gauges CARY TLH
Steel / step size 0.002 mm / uneven dimensions
Coloured aluminium handle labelled with nominal dimension.
Features:
Accuracy ±0.0004 mm (Ø 0.301...Ø 2.999)
Accuracy ±0.0005 mm (Ø 3.001…Ø 9.999)
Note:
Executions not standard on request
Appropriate accessories:
458220; 558230 Protection and packaging tube
064160 Accessories
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.301…0.499 3.0 2.501…2.999 8.0
0.501…0.999 4.0 3.001…3.499 9.0
1.001…1.499 5.0 3.501…3.999 10.0
1.501…1.999 6.0 4.001…4.999 11.0
2.001…2.499 7.0 5.001…9.999 12.0
