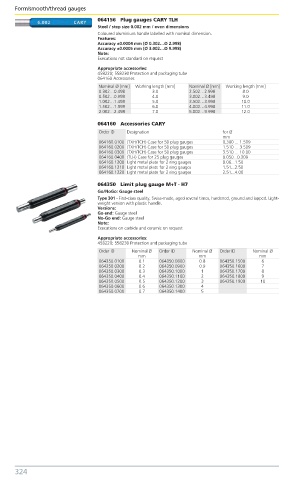

064156 Plug gauges CARY TLH
Steel / step size 0.002 mm / even dimensions
Coloured aluminium handle labelled with nominal dimension.
Features:
Accuracy ±0.0004 mm (Ø 0.302…Ø 2.998)
Accuracy ±0.0005 mm (Ø 3.002…Ø 9.998)
Note:
Executions not standard on request
Appropriate accessories:
458220; 558230 Protection and packaging tube
064160 Accessories
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.302…0.498 3.0 2.502…2.998 8.0
0.502…0.998 4.0 3.002…3.498 9.0
1.002…1.498 5.0 3.502…3.998 10.0
1.502…1.998 6.0 4.002…4.998 11.0
2.002…2.498 7.0 5.002…9.998 12.0
064160 Accessories CARY
Order ID Designation for Ø
mm
064160.0100 (TXH/TCH) Case for 50 plug gauges 0.300 ... 1.509
064160.0200 (TXH/TCH) Case for 50 plug gauges 1.510 ... 3.509
064160.0300 (TXH/TCH) Case for 50 plug gauges 3.510 ... 10.00
064160.0400 (TLH) Case for 25 plug gauges 0.050...0.309
064160.1200 Light metal plate for 2 ring gauges 0.06...1.50
064160.1210 Light metal plate for 2 ring gauges 1.51...2.50
064160.1220 Light metal plate for 2 ring gauges 2.51...4.00
064350 Limit plug gauge M+T - H7
Go/NoGo: Gauge steel
Type 301 - First-class quality, Swiss-made, aged several times, hardened, ground and lapped. Light-
weight version with plastic handle.
Versions:
Go end: Gauge steel
No-Go end: Gauge steel
Note:
Executions on carbide and ceramic on request
Appropriate accessories:
458220; 558230 Protection and packaging tube
Order ID Nominal Ø Order ID Nominal Ø Order ID Nominal Ø
mm mm mm
064350.0100 0.1 064350.0800 0.8 064350.1500 6
064350.0200 0.2 064350.0900 0.9 064350.1600 7
064350.0300 0.3 064350.1000 1 064350.1700 8
064350.0400 0.4 064350.1100 2 064350.1800 9
064350.0500 0.5 064350.1200 3 064350.1900 10
064350.0600 0.6 064350.1300 4
064350.0700 0.7 064350.1400 5
