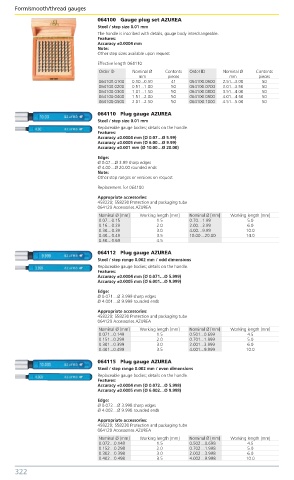

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
064100 Gauge plug set AZUREA
Steel / step size 0.01 mm
The handle is inscribed with details, gauge body interchangeable.
Features:
Accuracy ±0.0004 mm
Note:
Other step sizes available upon request
Effective length 064110
Order ID Nominal Ø Contents Order ID Nominal Ø Contents
mm pieces mm pieces
064100.0100 0.10...0.50 41 064100.0600 2.51...3.00 50
064100.0200 0.51...1.00 50 064100.0700 3.01...3.50 50
064100.0300 1.01...1.50 50 064100.0800 3.51...4.00 50
064100.0400 1.51...2.00 50 064100.0900 4.01...4.50 50
064100.0500 2.01...2.50 50 064100.1000 4.51...5.00 50
064110 Plug gauge AZUREA
Steel / step size 0.01 mm
Replaceable gauge bodies; details on the handle.
Features:
Accuracy ±0.0004 mm (Ø 0.07…Ø 5.99)
Accuracy ±0.0005 mm (Ø 6.00…Ø 9.99)
Accuracy ±0.001 mm (Ø 10.00…Ø 20.00)
Edge:
Ø 0.07…Ø 3.99 sharp edges
Ø 4.00…Ø 20.00 rounded ends
Note:
Other step ranges or versions on request
Replacement for 064100
Appropriate accessories:
458220; 558230 Protection and packaging tube
064120 Accessories AZUREA
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.07…0.15 1.5 0.70…1.99 5.0
0.16…0.29 2.0 2.00…3.99 6.0
0.30…0.39 3.0 4.00…9.99 10.0
0.40…0.49 3.5 10.00…20.00 14.0
0.50…0.69 4.5
064112 Plug gauge AZUREA
Steel / step range 0.002 mm / odd dimensions
Replaceable gauge bodies; details on the handle.
Features:
Accuracy ±0.0004 mm (Ø 0.071…Ø 5.999)
Accuracy ±0.0005 mm (Ø 6.001…Ø 9.999)
Edge:
Ø 0.071…Ø 3.999 sharp edges
Ø 4.001…Ø 9.999 rounded ends
Appropriate accessories:
458220; 558230 Protection and packaging tube
064120 Accessories AZUREA
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.071...0.149 1.5 0.501...0.699 4.5
0.151...0.299 2.0 0.701...1.999 5.0
0.301...0.399 3.0 2.001...3.999 6.0
0.401...0.499 3.5 4.001...9.999 10.0
064115 Plug gauge AZUREA
Steel / step range 0.002 mm / even dimensions
Replaceable gauge bodies; details on the handle.
Features:
Accuracy ±0.0004 mm (Ø 0.072…Ø 5.998)
Accuracy ±0.0005 mm (Ø 6.002…Ø 9.998)
Edge:
Ø 0.072…Ø 3.998 sharp edges
Ø 4.002…Ø 9.998 rounded ends
Appropriate accessories:
458220; 558230 Protection and packaging tube
064120 Accessories AZUREA
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.072…0.148 1.5 0.502…0.698 4.5
0.152…0.298 2.0 0.702…1.998 5.0
0.302…0.398 3.0 2.002…3.998 6.0
0.402…0.498 3.5 4.002…9.998 10.0
