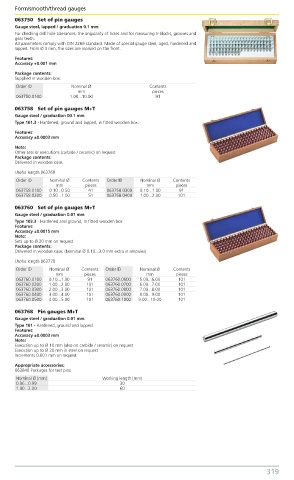

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
063750 Set of pin gauges
Gauge steel, lapped / graduation 0.1 mm
For checking drill hole tolerances, the angularity of holes and for measuring V-blocks, grooves and
gear teeth.
All parameters comply with DIN 2269 standard. Made of special gauge steel, aged, hardened and
lapped. From Ø 3 mm, the sizes are marked on the front.
Features:
Accuracy ±0.001 mm
Package contents:
Supplied in wooden box.
Order ID Nominal Ø Contents
mm pieces
063750.0100 1.00...10.00 91
063758 Set of pin gauges M+T
Gauge steel / graduation 00.1 mm
Type 101.3 - Hardened, ground and lapped, in fitted wooden box.
Features:
Accuracy ±0.0003 mm
Note:
Other sets or executions (carbide / ceramic) on request
Package contents:
Delivered in wooden case.
Useful length 063768
Order ID Nominal Ø Contents Order ID Nominal Ø Contents
mm pieces mm pieces
063758.0100 0.10...0.50 41 063758.0300 0.10...1.00 91
063758.0200 0.50...1.00 51 063758.0400 1.00...2.00 101
063760 Set of pin gauges M+T
Gauge steel / graduation 0.01 mm
Type 103.3 - Hardened and ground, in fitted wooden box.
Features:
Accuracy ±0.0015 mm
Note:
Sets up to Ø 20 mm on request
Package contents:
Delivered in wooden case. (Nominal Ø 0.10...3.0 mm extra in ampules)
Useful length 063770
Order ID Nominal Ø Contents Order ID Nominal Ø Contents
mm pieces mm pieces
063760.0100 0.10...1.00 91 063760.0600 5.00...6.00 101
063760.0200 1.00...2.00 101 063760.0700 6.00...7.00 101
063760.0300 2.00...3.00 101 063760.0800 7.00...8.00 101
063760.0400 3.00...4.00 101 063760.0900 8.00...9.00 101
063760.0500 4.00...5.00 101 063760.1000 9.00...10.00 101
063768 Pin gauges M+T
Gauge steel / graduation 0.01 mm
Type 101 - Hardened, ground and lapped.
Features:
Accuracy ±0.0003 mm
Note:
Execution up to Ø 10 mm (also on carbide / ceramic) on request
Execution up to Ø 20 mm in steel on request
Increments 0.001 mm on request
Appropriate accessories:
063840 Packages for test pins
Nominal Ø [mm] Working length [mm]
0.06...0.99 30
1.00...2.00 60
