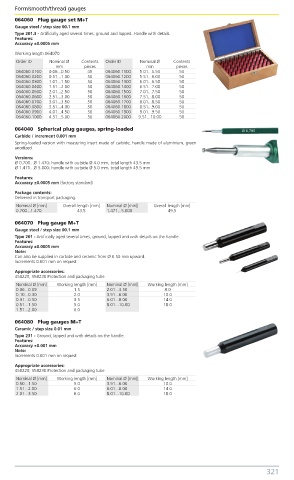

Page 327 - Benma | Blue book 5.0

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
064060 Plug gauge set M+T
Gauge steel / step size 00.1 mm
Type 201.3 - Artificially aged several times, ground and lapped. Handle with details.
Features:
Accuracy ±0.0005 mm
Working length 064070
Order ID Nominal Ø Contents Order ID Nominal Ø Contents
mm pieces mm pieces
064060.0100 0.06...0.50 45 064060.1100 5.01...5.50 50
064060.0200 0.51...1.00 50 064060.1200 5.51...6.00 50
064060.0300 1.01...1.50 50 064060.1300 6.01...6.50 50
064060.0400 1.51...2.00 50 064060.1400 6.51...7.00 50
064060.0500 2.01...2.50 50 064060.1500 7.01...7.50 50
064060.0600 2.51...3.00 50 064060.1600 7.51...8.00 50
064060.0700 3.01...3.50 50 064060.1700 8.01...8.50 50
064060.0800 3.51...4.00 50 064060.1800 8.51...9.00 50
064060.0900 4.01...4.50 50 064060.1900 9.01...9.50 50
064060.1000 4.51...5.00 50 064060.2000 9.51...10.00 50
064040 Spherical plug gauges, spring-loaded
Carbide / increment 0.001 mm
Spring-loaded version with measuring insert made of carbide, handle made of aluminium, green
anodized.
Versions:
Ø 0.700...Ø 1.470: handle with outside Ø 4.0 mm, total length 43.5 mm
Ø 1.471...Ø 5.000: handle with outside Ø 5.0 mm, total length 49.5 mm
Features:
Accuracy ±0.0005 mm (factory standard)
Package contents:
Delivered in transport packaging.
Nominal Ø [mm] Overall length [mm] Nominal Ø [mm] Overall length [mm]
0.700...1.470 43.5 1.471...5.000 49.5
064070 Plug gauge M+T
Gauge steel / step size 00.1 mm
Type 201 - Artificially aged several times, ground, lapped and with details on the handle.
Features:
Accuracy ±0.0005 mm
Note:
Can also be supplied in carbide and ceramic from Ø 0.50 mm upward.
Increments 0.001 mm on request
Appropriate accessories:
458220; 558230 Protection and packaging tube
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.06...0.09 1.5 2.01...3.50 8.0
0.10...0.30 2.0 3.51...6.00 10.0
0.31...0.50 3.5 6.01...8.00 14.0
0.51...1.50 5.0 8.01...10.00 18.0
1.51...2.00 6.0
064080 Plug gauges M+T
Ceramic / step size 0.01 mm
Type 231 - Ground, lapped and with details on the handle.
Features:
Accuracy ±0.001 mm
Note:
Increments 0.001 mm on request
Appropriate accessories:
458220; 558230 Protection and packaging tube
Nominal Ø [mm] Working length [mm] Nominal Ø [mm] Working length [mm]
0.50...1.50 5.0 3.51...6.00 10.0
1.51...2.00 6.0 6.01...8.00 14.0
2.01...3.50 8.0 8.01...10.00 18.0

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 321
