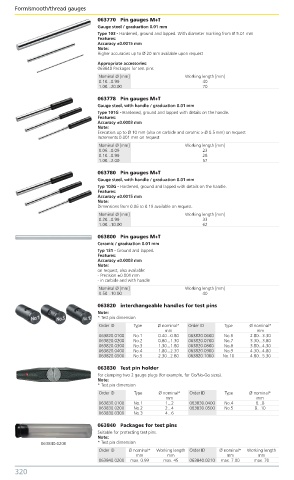

Page 326 - Benma | Blue book 5.0

Form/smooth/thread gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
063770 Pin gauges M+T
Gauge steel / graduation 0.01 mm
Type 103 - Hardened, ground and lapped. With diameter marking from Ø 5.01 mm
Features:
Accuracy ±0.0015 mm
Note:
Higher accuracies up to Ø 20 mm available upon request
Appropriate accessories:
063840 Packages for test pins
Nominal Ø [mm] Working length [mm]
0.10...0.99 40
1.00...20.00 70
063778 Pin gauges M+T
Gauge steel, with handle / graduation 0.01 mm
Type 101G - Hardened, ground and lapped with details on the handle.
Features:
Accuracy ±0.0003 mm
Note:
Execution up to Ø 10 mm (also on carbide and ceramic > Ø 0.5 mm) on request
Increments 0.001 mm on request
Nominal Ø [mm] Working length [mm]
0.06...0.09 23
0.10...0.99 28
1.00...2.00 57
063780 Pin gauges M+T
Gauge steel, with handle / graduation 0.01 mm
Typ 103G - Hardened, ground and lapped with details on the handle.
Features:
Accuracy ±0.0015 mm
Note:
Dimensions from 0.06 to 0.19 available on request.
Nominal Ø [mm] Working length [mm]
0.20...0.99 33
1.00...10.00 62
063800 Pin gauges M+T
Ceramic / graduation 0.01 mm
Typ 131 - Ground and lapped.
Features:
Accuracy ±0.0003 mm
Note:
on request, also available:
- Precision ±0.001 mm
- in carbide and with handle
Nominal Ø [mm] Working length [mm]
0.50...10.00 40

063820 interchangeable handles for test pins
Note:
* Test pin dimension
Order ID Type Ø nominal* Order ID Type Ø nominal*
mm mm
063820.0100 No.1 0.40...0.80 063820.0600 No.6 2.80...3.30
063820.0200 No.2 0.80...1.30 063820.0700 No.7 3.30...3.80
063820.0300 No.3 1.30...1.80 063820.0800 No.8 3.80...4.30
063820.0400 No.4 1.80...2.30 063820.0900 No.9 4.30...4.80
063820.0500 No.5 2.30...2.80 063820.1000 No.10 4.80...5.30
063830 Test pin holder
For clamping two 2 gauge plugs (for example, for Go/No-Go sizes).
Note:
* Test pin dimension
Order ID Type Ø nominal* Order ID Type Ø nominal*
mm mm
063830.0100 No.1 1...2 063830.0400 No.4 6...8
063830.0200 No.2 2...4 063830.0500 No.5 8...10
063830.0300 No.3 4...6

063840 Packages for test pins
Suitable for protecting test pins.
Note:
063840.0200 * Test pin dimension
Order ID Ø nominal* Working length Order ID Ø nominal* Working length
mm mm mm mm
063840.0200 max. 0.99 max. 45 063840.0210 max. 7.00 max. 70
320 Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch
