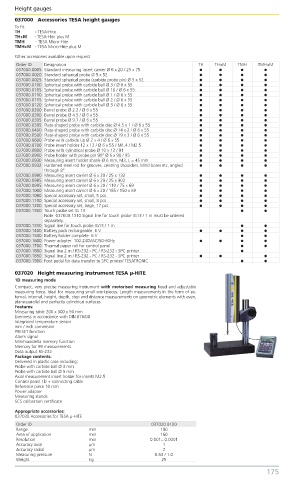

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
037000 Accessories TESA height gauges
To fit:
TH - TESA-Hite
TH+M - TESA-Hite plus M
TMH - TESA Micro-Hite
TMH+M - TESA Micro-Hite plus M
Other accessories available upon request
Order ID Designation TH TH+M TMH TMH+M
037000.0005 Standard measuring insert carrier Ø 6 x 20 / 25 x 75
037000.0020 Standard spherical probe Ø 5 x 52
037000.0025 Standard spherical probe (carbide probe pin) Ø 5 x 52
037000.0100 Spherical probe with carbide ball Ø 3 / Ø 6 x 55
037000.0105 Spherical probe with carbide ball Ø 10 / Ø 6 x 55
037000.0110 Spherical probe with carbide ball Ø 1 / Ø 6 x 55
037000.0115 Spherical probe with carbide ball Ø 2 / Ø 6 x 55
037000.0120 Spherical probe with carbide ball Ø 3 / Ø 6 x 55
037000.0200 Barrel probe Ø 2.2 / Ø 6 x 55
037000.0300 Barrel probe Ø 4.5 / Ø 6 x 55
037000.0305 Barrel probe Ø 9.7 / Ø 6 x 55
037000.0395 Plate-shaped probe with carbide disc Ø 4.5 x 1 / Ø 6 x 55
037000.0400 Plate-shaped probe with carbide disc Ø 14 x 2 / Ø 6 x 55
037000.0500 Plate-shaped probe with carbide disc Ø 19 x 3 / Ø 6 x 55
037000.0600 Probe with carbide tip Ø 2 x 4 / Ø 6 x 55
037000.0700 Probe insert holder 12 x 12 / Ø 6 x 55 / M1.4 / M2.5
037000.0800 Probe with cylindrical probe Ø 10 x 12 / 91
037000.0900 Probe holder with probe pin 90° Ø 6 x 90 / 95
037000.0930 Measuring insert holder shank-Ø 6 mm, M3, L = 45 mm
037000.0932 Hardened steel rod for grooves, centring shoulders, blind bores etc, angled
through 8°
037000.0980 Measuring insert carrier Ø 6 x 20 / 25 x 132
037000.0985 Measuring insert carrier Ø 6 x 20 / 25 x 302
037000.0995 Measuring insert carrier Ø 6 x 20 / 110 / 75 x 69
037000.1000 Measuring insert carrier Ø 6 x 20 / 185 / 150 x 69
037000.1080 Special accessory set, small, 5 pcs
037000.1100 Special accessory set, small, 8 pcs
037000.1200 Special accessory set, large, 17 pcs
037000.1300 Touch probe set IG 13
Note: 037000.1310 Signal line for touch probe IG13 / 1 m must be ordered
separately.
037000.1310 Signal line for touch probe IG13 / 1 m
037000.1400 Battery pack rechargeable 6 V
037000.1500 Battery holder complete 6 V
037000.1600 Power adapter 100.240VAC/50-60Hz
037000.1700 Thermal paper roll for control panel
037000.1800 Signal line 2 m / RS-232 - PC / RS-232 - SPC printer
037000.1850 Signal line 2 m / RS-232 - PC / RS-232 - SPC printer
037000.1900 Foot pedal for data transfer to SPC printer/ TESATRONIC
037020 Height measuring instrument TESA µ-HITE
1D measuring mode
Compact, very precise measuring instrument with motorised measuring head and adjustable
measuring force. Ideal for measuring small workpieces. Length measurements in the form of ex-
ternal, internal, height, depth, step and distance measurements on geometric elements with even,
plane-parallel and perfectly cylindrical surfaces.
Features:
Measuring table 200 x 300 x 50 mm
Evenness in accordance with DIN 876/00
Integrated temperature sensor
mm / inch conversion
PRESET function
Alarm signal
Min/max/delta memory function
Memory for 99 measurements
Data output RS-232
Package contents:
Delivered in plastic case including:
Probe with carbide ball Ø 3 mm
Probe with carbide ball Ø 5 mm
Axial measurement insert holder for inserts M2.5
Control panel 1D + connecting cable
Reference piece 10 mm
Power adapter
Measuring stands
SCS calibration certificate
Appropriate accessories:
037030 Accessories for TESA µ-HITE
Order ID 037020.0100
Range mm 100
Area of application mm 160
Resolution mm 0.001...0.0001
Accuracy axial µm 1
Accuracy radial µm 2
Measuring pressure N 0.63 / 1.0
Weight kg 25
Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 175
