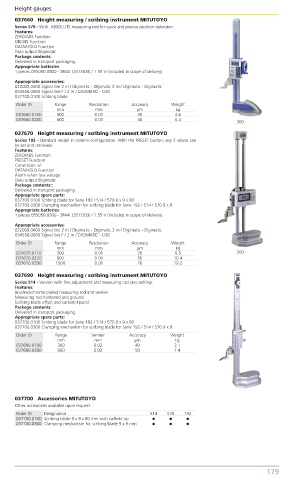

Page 184 - Benma | Blue book 5.0

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
037660 Height measuring / scribing instrument MITUTOYO
Series 570 - With ABSOLUTE measuring rod for quick and precise position detection.
Features:
ZERO/ABS Function
ORIGIN Function
DATA/HOLD Function
Data output Digimatic
Package contents:
Delivered in transport packaging.
Appropriate batteries:
1 pieces 055050.0900 - SR44 (357/303) / 1.55 V (included in scope of delivery).
Appropriate accessories:
022000.0400 Signal line 2 m / Digimatic - Digimatic 2 m / Digimatic - Digimatic
054558.0060 Signal line F / 2 m / DIGIMATIC - USB
037700.0100 Scribing blade
Order ID Range Resolution Accuracy Weight
mm mm µm kg
037660.0100 300 0.01 30 4.6
037660.0200 600 0.01 50 6.4
300
037670 Height measuring / scribing instrument MITUTOYO
Series 192 - Standard model in column configuration. With the PRESET button, any 2 values can
be set and retrieved.
Features:
ZERO/ABS Function
PRESET Function
Conversion +/-
DATA/HOLD Function
Alarm when low voltage
Data output Digimatic
Package contents::
Delivered in transport packaging.
Appropriate spare parts:
037700.0100 Scribing blade for Serie 192 / 514 / 570 9 x 9 x 80
037700.0300 Clamping mechanism for scribing blade for Serie 192 / 514 / 570 9 x 9
Appropriate batteries:
1 pieces 055050.0900 - SR44 (357/303) / 1.55 V (included in scope of delivery).
Appropriate accessories:
022000.0400 Signal line 2 m / Digimatic - Digimatic 2 m / Digimatic - Digimatic
054558.0060 Signal line F / 2 m / DIGIMATIC - USB
Order ID Range Resolution Accuracy Weight
mm mm µm kg
037670.0110 300 0.01 20 6.5 300
037670.0220 600 0.01 50 10.4
037670.0330 1000 0.01 70 19.2

037690 Height measuring / scribing instrument MITUTOYO
Series 514 - Version with fine adjustment and measuring rod zero setting.
Features:
Brushed-chrome plated measuring rod and vernier
Measuring rod hardened and ground
Scribing blade offset and carbide-tipped
Package contents:
Delivered in transport packaging.
Appropriate spare parts:
037700.0100 Scribing blade for Serie 192 / 514 / 570 9 x 9 x 80
037700.0300 Clamping mechanism for scribing blade for Serie 192 / 514 / 570 9 x 9
Order ID Range Vernier Accuracy Weight
mm mm µm kg
037690.0100 300 0.02 40 3.1
037690.0200 600 0.02 50 7.4

037700 Accessories MITUTOYO
Other accessories available upon request
Order ID Designation 514 570 192
037700.0100 Scribing blade 9 x 9 x 80 mm with carbide tip
037700.0300 Clamping mechanism for scribing blade 9 x 9 mm

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 179
