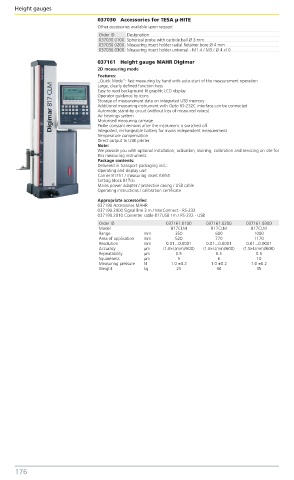

Page 181 - Benma | Blue book 5.0

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
037030 Accessories for TESA µ-HITE
Other accessories available upon request
Order ID Designation
037030.0100 Spherical probe with carbide ball Ø 3 mm
037030.0200 Measuring insert holder radial Retainer bore Ø 4 mm
037030.0300 Measuring insert holder universal - M1.4 / M3 / Ø 4 x10
037161 Height gauge MAHR Digimar
2D measuring mode
Features:
„Quick Mode“: fast measuring by hand with auto-start of the measurement operation
Large, clearly defined function keys
Easy to read background lit graphic LCD display
Operator guidance by icons
Storage of measurement data on integrated USB memory
Additional measuring instrument with Opto RS-232C interface can be connected
Automatic stand-by circuit (without loss of measured values)
Air bearings system
Motorised measuring carriage
Probe constant remains after the instrument is switched off
Integrated, rechargeable battery for mains independent measurement
Temperature compensation
Direct output to USB printer
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
Operating and display unit
Carrier 817h1 / measuring insert K6/51
Setting block 817eb
Mains power adapter / protective casing / USB cable
Operating instructions / calibration certificate
Appropriate accessories:
037190 Accessories MAHR
037190.2000 Signal line 3 m / MarConnect - RS-232
037190.2010 Converter cable 817USB 1m / RS-232 - USB
Order ID 037161.0100 037161.0200 037161.0300
Model 817CLM 817CLM 817CLM
Range mm 350 600 1000
Area of application mm 520 770 1170
Resolution mm 0.01...0.0001 0.01...0.0001 0.01...0.0001
Accuracy µm (1.8+L(mm)/600) (1.8+L(mm)/600) (1.8+L(mm)/600)
Repeatability µm 0.5 0.5 0.5
Squareness µm 5 6 10
Measuring pressure N 1.0 ±0.2 1.0 ±0.2 1.0 ±0.2
Weight kg 25 30 35
