Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

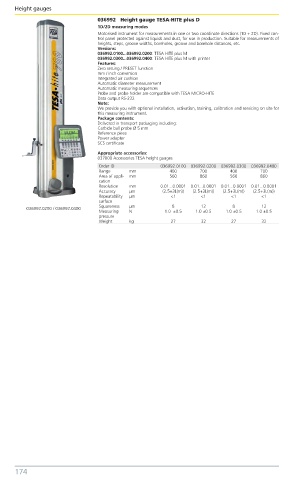

036992 Height gauge TESA-HITE plus D
1D/2D measuring modes
Motorised instrument for measurements in one or two coordinate directions (1D + 2D). Fixed con-
trol panel protected against liquids and dust, for use in production. Suitable for measurements of
heights, steps, groove widths, boreholes, groove and borehole distances, etc.
Versions:
036992.0100...036992.0200: TESA HITE plus M
036992.0300...036992.0400: TESA HITE plus M with printer
Features:
Zero setting / PRESET function
mm / inch conversion
Integrated air cushion
Automatic diameter measurement
Automatic measuring sequences
Probe and probe holder are compatible with TESA MICRO-HITE
Data output RS-232
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging including:
Carbide ball probe Ø 5 mm
Reference piece
Power adapter
SCS certificate
Appropriate accessories:
037000 Accessories TESA height gauges
Order ID 036992.0100 036992.0200 036992.0300 036992.0400
Range mm 400 700 400 700
Area of appli- mm 560 860 560 860
cation
Resolution mm 0.01...0.0001 0.01...0.0001 0.01...0.0001 0.01...0.0001
Accuracy µm (2.5+3L(m)) (2.5+3L(m)) (2.5+3L(m)) (2.5+3L(m))
Repeatability µm <1 <1 <1 <1
surface
Squareness µm 8 12 8 12
036992.0200 / 036992.0400
Measuring N 1.0 ±0.5 1.0 ±0.5 1.0 ±0.5 1.0 ±0.5
pressure
Weight kg 27 32 27 32
