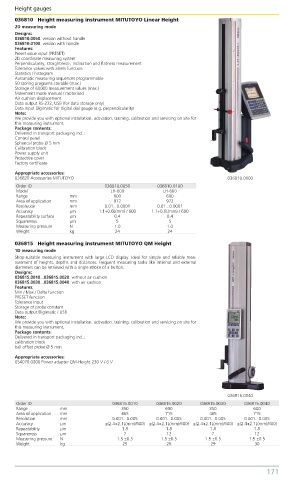

036810 Height measuring instrument MITUTOYO Linear Height
2D measuring mode
Designs:
036810.0050: version without handle
036810.0100: version with handle
Features:
Preset value input (PRESET)
2D coordinate measuring system
Perpendicularity, straightness-, inclination and flatness measurement
Tolerance values with alarm function
Statistics / histogram
Automatic measuring sequences programmable
50 storing programs storable (max.)
Storage of 60000 measurement values (max.)
Movement mode manual / motorised
Air cushion displacement
Data output RS-232, USB (for data storage only)
Data input Digimatic for digital dial gauge (e.g. perpendicularity)
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
Control panel
Spherical probe Ø 5 mm
Calibration block
Power supply unit
Protective cover
Factory certificate
Appropriate accessories:
036820 Accessories MITUTOYO 036810.0100
Order ID 036810.0050 036810.0100
Model LH-600 LH-600
Range mm 600 600
Area of application mm 972 972
Resolution mm 0.01...0.0001 0.01...0.0001
Accuracy µm 1.1+0.6L(mm) / 600 1.1+0.6L(mm) / 600
Repeatability surface µm 0.4 0.4
Squareness µm 5 5
Measuring pressure N 1.0 1.0
Weight kg 24 24
036815 Height measuring instrument MITUTOYO QM Height
1D measuring mode
Shop-suitable measuring instrument with large LCD display. Ideal for simple and reliable mea-
surement of heights, depths and distances. Frequent measuring tasks like internal and external
diameters can be retrieved with a single stroke of a button.
Designs:
036815.0010...036815.0020: without air cushion
036815.0030...036815.0040: with air cushion
Features:
Min / Max / Delta function
PRESET function
Tolerance input
Storage of probe constant
Data output Digimatic / USB
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
calibration block
ball offset probe Ø 5 mm
Appropriate accessories:
054070.0200 Power adapter QM-Height 230 V / 6 V

036815.0040
Order ID 036815.0010 036815.0020 036815.0030 036815.0040
Range mm 350 600 350 600
Area of application mm 465 715 465 715
Resolution mm 0.001...0.005 0.001...0.005 0.001...0.005 0.001...0.005
Accuracy µm ±(2.4+2.1L(mm)/600) ±(2.4+2.1L(mm)/600) ±(2.4+2.1L(mm)/600) ±(2.4+2.1L(mm)/600)
Repeatability µm 1.8 1.8 1.8 1.8
Squareness µm 7 12 7 12
Measuring pressure N 1.5 ±0.5 1.5 ±0.5 1.5 ±0.5 1.5 ±0.5
Weight kg 25 26 29 30
