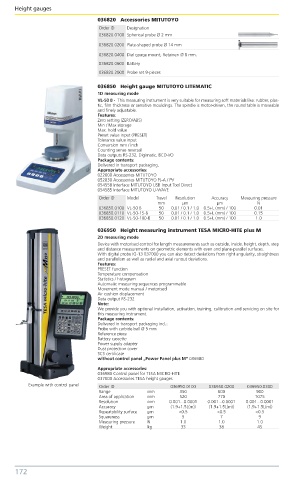

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
036820 Accessories MITUTOYO
Order ID Designation
036820.0100 Spherical probe Ø 2 mm
036820.0200 Plate-shaped probe Ø 14 mm
036820.0400 Dial gauge mount, Retainer- Ø 8 mm.
036820.0600 Battery
036820.2000 Probe set 9-pieces

036850 Height gauge MITUTOYO LITEMATIC
1D measuring mode
VL-50 B - This measuring instrument is very suitable for measuring soft materials like: rubber, plas-
tic, film thickness or sensitive mouldings. The spindle is motor-driven, the round table is moveable
and finely adjustable.
Features:
Zero setting (ZERO/ABS)
Min / Max storage
Max. hold value
Preset value input (PRESET)
Tolerance value input
Conversion mm / inch
Counting sense reversal
Data outputs RS-232, Digimatic, BCD-I/O
Package contents:
Delivered in transport packaging.
Appropriate accessories:
022000 Accessories MITUTOYO
052830 Accessories MITUTOYO PJ-A / PV
054558 Interface MITUTOYO USB Input Tool Direct
054585 Interface MITUTOYO U-WAVE
Order ID Model Travel Resolution Accuracy Measuring pressure
mm µm µm N
036850.0100 VL-50 B 50 0.01 / 0.1 / 1.0 0.5+L (mm) / 100 0.01
036850.0110 VL-50-15-B 50 0.01 / 0.1 / 1.0 0.5+L (mm) / 100 0.15
036850.0120 VL-50-100-B 50 0.01 / 0.1 / 1.0 0.5+L (mm) / 100 1.0

036950 Height measuring instrument TESA MICRO-HITE plus M
2D measuring mode
Device with motorised control for length measurements such as outside, inside, height, depth, step
and distance measurements on geometric elements with even and plane-parallel surfaces.
With digital probe IG-13 037000 you can also detect deviations from right angularity, straightness
and parallelism as well as radial and axial runout deviations.
Features:
PRESET function
Temperature compensation
Statistics / histogram
Automatic measuring sequences programmable
Movement mode manual / motorised
Air cushion displacement
Data output RS-232
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
Probe with carbide ball Ø 5 mm
Reference piece
Battery cassette
Power supply adapter
Dust protection cover
SCS certificate
without control panel „Power Panel plus M“ 036980
Appropriate accessories:
036980 Control panel for TESA MICRO-HITE
037000 Accessories TESA height gauges
Example with control panel Order ID 036950.0100 036950.0200 036950.0300
Range mm 350 600 900
Area of application mm 520 770 1075
Resolution mm 0.001...0.0001 0.001...0.0001 0.001...0.0001
Accuracy µm (1.9+1.5L(m)) (1.9+1.5L(m)) (1.9+1.5L(m))
Repeatability surface µm <0.5 <0.5 <0.5
Squareness µm 5 7 9
Measuring pressure N 1.0 1.0 1.0
Weight kg 33 38 45
