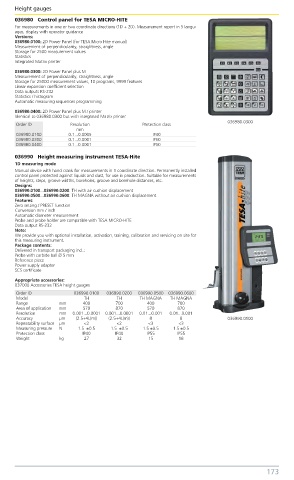

Height gauges                        Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      036980   Control panel for TESA MICRO-HITE
      For measurements in one or two coordinate directions (1D + 2D). Measurement report in 5 langu-
      ages, display with operator guidance
      Versions:
      036980.0100: 2D Power Panel (for TESA Micro Hite manual)
      Measurement of perpendicularity, straightness, angle
      Storage for 2500 measurement values
      Statistics
      Integrated Matrix printer
      036980.0300: 2D Power Panel plus M
      Measurement of perpendicularity, straightness, angle
      Storage for 25000 measurement values, 10 programs, 9999 features
      Linear expansion coefficient selection
      Data outputs RS-232
      Statistics / histogram
      Automatic measuring sequences programming
      036980.0400: 2D Power Panel plus M / printer
      Identical to 036980.0300 but with integrated Matrix printer.
                                                                          036980.0300
      Order ID          Resolution             Protection class
                          mm
      036980.0100      0.1...0.0005               IP40
      036980.0300      0.1...0.0001               IP50
      036980.0400      0.1...0.0001               IP50
      036990   Height measuring instrument TESA-Hite
      1D measuring mode
      Manual device with hand crank for measurements in 1 coordinate direction. Permanently installed
      control panel protected against liquids and dust, for use in production. Suitable for measurements
      of heights, steps, groove widths, boreholes, groove and borehole distances, etc.
      Designs:
      036990.0100...036990.0200: TH with air cushion displacement
      036990.0500...036990.0600: TH MAGNA without air cushion displacement
      Features:
      Zero setting / PRESET function
      Conversion mm / inch
      Automatic diameter measurement
      Probe and probe holder are compatible with TESA MICRO-HITE
      Data output RS-232
      Note:
      We provide you with optional installation, activation, training, calibration and servicing on site for
      this measuring instrument.
      Package contents:
      Delivered in transport packaging incl.:
      Probe with carbide ball Ø 5 mm
      Reference piece
      Power supply adapter
      SCS certificate
      Appropriate accessories:
      037000 Accessories TESA height gauges
      Order ID           036990.0100  036990.0200  036990.0500  036990.0600
      Model                 TH         TH     TH MAGNA  TH MAGNA
      Range         mm      400       700       400       700
      Area of application  mm  570    870       570       870
      Resolution    mm  0.001...0.0001  0.001...0.0001  0.01...0.001  0.01...0.001
      Accuracy      µm   (2.5+4L(m))  (2.5+4L(m))  8       8              036990.0100
      Repeatability surface  µm  <2    <2        <3        <3
      Measuring pressure  N  1.5  ±0.5  1.5  ±0.5  1.5 ±0.5  1.5 ±0.5
      Protection class      IP40      IP40      IP55      IP55
      Weight        kg      27         32        15        18
