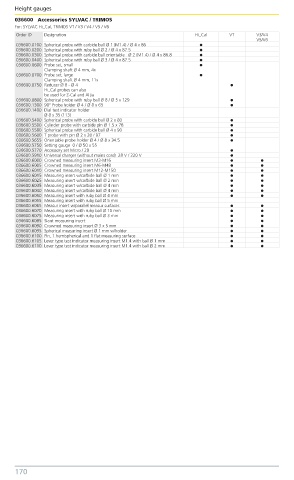

Page 175 - Benma | Blue book 5.0

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
036600 Accessories SYLVAC / TRIMOS
For: SYLVAC Hi_Cal, TRIMOS VT / V3 / V4 / V5 / V6
Order ID Designation Hi_Cal VT V3/V4
V5/V6
036600.0100 Spherical probe with carbide ball Ø 1 (M1.4) / Ø 4 x 86
036600.0200 Spherical probe with ruby ball Ø 2 / Ø 4 x 87.5
036600.0300 Spherical probe with carbide ball orientable Ø 2 (M1.4) / Ø 4 x 86.8
036600.0400 Spherical probe with ruby ball Ø 3 / Ø 4 x 87.5
036600.0600 Probe set, small
Clamping shaft Ø 4 mm, 4x
036600.0700 Probe set, large
Clamping shaft Ø 4 mm, 11x
036600.0750 Reducer Ø 8 - Ø 4
Hi_Cal probes can also
be used for Z-Cal and Altia
036600.0800 Spherical probe with ruby ball Ø 8 / Ø 5 x 129
036600.1300 90° Probe holder Ø 4 / Ø 8 x 65
036600.1400 Dial test indicator holder
Ø 8 x 35 (113)
036600.5400 Spherical probe with carbide ball Ø 2 x 80
036600.5500 Cylinder probe with carbide pin Ø 1.5 x 78
036600.5580 Spherical probe with carbide ball Ø 4 x 90
036600.5600 T probe with pin Ø 2 x 20 / 97
036600.5655 Orientable probe holder Ø 4 / Ø 8 x 34.5
036600.5750 Setting gauge 0 / Ø 50 x 55
036600.5770 Accessory set Micro / 20
036600.5910 Universal charger (without mains cord) 28 V / 220 V
036600.6000 Crowned measuring insert M3-M16
036600.6005 Crowned measuring insert M6-M48
036600.6010 Crowned measuring insert M12-M150
036600.6015 Measuring insert w/carbide ball Ø 1 mm
036600.6025 Measuring insert w/carbide ball Ø 2 mm
036600.6035 Measuring insert w/carbide ball Ø 4 mm
036600.6040 Measuring insert w/carbide ball Ø 4 mm
036600.6050 Measuring insert with ruby ball Ø 4 mm
036600.6055 Measuring insert with ruby ball Ø 5 mm
036600.6065 Measur insert w/parallel measur surfaces
036600.6070 Measuring insert with ruby ball Ø 10 mm
036600.6075 Measuring insert with ruby ball Ø 3 mm
036600.6085 Slant measuring insert
036600.6090 Crowned measuring insert Ø 3 x 5 mm
036600.6095 Spherical measuring insert Ø 1 mm w/holder
036600.6100 Pin, 1 hemispherical and 1 flat measuring surface
036600.6105 Lever type test indicator measuring insert M1.4 with ball Ø 1 mm
036600.6110 Lever type test indicator measuring insert M1.4 with ball Ø 2 mm
