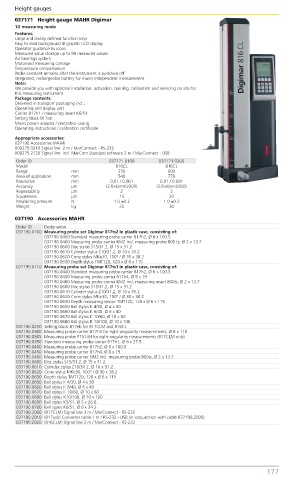

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
037171 Height gauge MAHR Digimar
1D measuring mode
Features:
Large and clearly defined function keys
Easy to read background lit graphic LCD display
Operator guidance by icons
Measured value storage up to 99 measured values
Air bearings system
Motorised measuring carriage
Temperature compensation
Probe constant remains after the instrument is switched off
Integrated, rechargeable battery for mains independent measurement
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
Operating and display unit
Carrier 817h1 / measuring insert K6/51
Setting block 817eb
Mains power adapter / protective casing
Operating instructions / calibration certificate
Appropriate accessories:
037190 Accessories MAHR
009275.0210 Signal line 2 m / MarConnect - RS-232
009275.2120 Signal line incl. MarCom Standard software 2 m / MarConnect - USB
Order ID 037171.0100 037171.0200
Model 816CL 816CL
Range mm 350 600
Area of application mm 540 770
Resolution mm 0.01 / 0.001 0.01 / 0.001
Accuracy µm (2.8+L(mm)/300) (2.8+l(mm)/300)
Repeatability µm 2 2
Squareness µm 15 20
Measuring pressure N 1.0 ±0.2 1.0 ±0.2
Weight kg 25 30
037190 Accessories MAHR
Order ID Designation
037190.0100 Measuring probe set Digimar 817ts2 in plastic case, consisting of:
037190.0400 Standard measuring probe carrier 817h2, Ø 6 x 100.5
037190.0460 Measuring probe carrier KM2 incl. measuring probe 800 ts, Ø 2 x 13.7
037190.0600 Disc stylus S15/31.2, Ø 15 x 31.2
037190.0610 Cylinder stylus Z10/31.2, Ø 10 x 31.2
037190.0620 Cone stylus MKe30, 100° / Ø 30 x 38.2
037190.0630 Depth stylus TMT120, 120 x Ø 6 x 115
037190.0110 Measuring probe set Digimar 817ts1 in plastic case, consisting of:
037190.0400 Standard measuring probe carrier 817h2, Ø 6 x 100.5
037190.0450 Measuring probe carrier 817h4, Ø 8 x 19
037190.0460 Measuring probe carrier KM2 incl. measuring insert 800ts, Ø 2 x 13.7
037190.0600 Disc stylus S15/31.2, Ø 15 x 31.2
037190.0610 Cylinder stylus Z10/31.2, Ø 10 x 31.2
037190.0620 Cone stylus MKe30, 100° / Ø 30 x 38.2
037190.0630 Depth measuring sensor TMT120, 120 x Ø 6 x 115
037190.0650 Ball stylus K 4/30, Ø 4 x 30
037190.0660 Ball stylus K 6/40, Ø 6 x 40
037190.0670 Ball stylus K 10/60, Ø 10 x 60
037190.0680 Ball stylus K 10/100, Ø 10 x 100
037190.0250 Setting block 817eb for 817CLM and 816CL
037190.0300 Measuring probe carrier 817h3 for right-angularity measurements, Ø 8 x 110
037190.0305 Measuring probe P1514H for right-angularity measurements (817CLM only)
037190.0350 Standard measuring probe carrier 817h1, Ø 6 x 27.5
037190.0400 Measuring probe carrier 817h2, Ø 6 x 100.5
037190.0450 Measuring probe carrier 817h4, Ø 8 x 19
037190.0460 Measuring probe carrier KM2 incl. measuring probe 800ts, Ø 2 x 13.7
037190.0600 Disc stylus S15/31.2, Ø 15 x 31.2
037190.0610 Cylinder stylus Z10/31.2, Ø 10 x 31.2
037190.0620 Cone stylus MKe30, 100° / Ø 30 x 38.2
037190.0630 Depth stylus TMT120, 120 x Ø 6 x 115
037190.0650 Ball stylus K 4/30, Ø 4 x 30
037190.0660 Ball stylus K 6/40, Ø 6 x 40
037190.0670 Ball stylus K 10/60, Ø 10 x 60
037190.0680 Ball stylus K10/100, Ø 10 x 100
037190.0690 Ball stylus K5/51, Ø 5 x 26.8
037190.0700 Ball stylus K6/51, Ø 6 x 24.2
037190.2000 (817CLM) Signal line 3 m / MarConnect - RS-232
037190.2010 (817usb) Converter cable 1 m / RS-232 - USB (in conjunction with cable 037190.2000)
037190.2020 (816CLM) Signal line 2 m / MarConnect - RS-232
