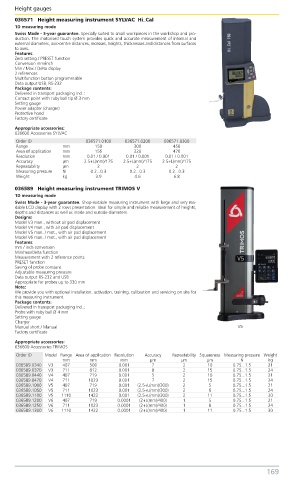

Page 174 - Benma | Blue book 5.0

Height gauges Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
036571 Height measuring instrument SYLVAC Hi_Cal
1D measuring mode
Swiss Made - 3-year guarantee. Specially suited to small workpieces in the workshop and pro-
duction. The motorised touch system provides quick and accurate measurement of internal and
external diameters, axis-centre distances, recesses, heights, thicknesses and distances from surfaces
to axes.
Features:
Zero setting / PRESET function
Conversion mm/inch
Min / Max / Delta display
2 references
Multifunction button programmable
Data output USB, RS-232
Package contents:
Delivered in transport packaging incl.:
Contact point with ruby ball tip Ø 3 mm
Setting gauge
Power adapter (charger)
Protective hood
Factory certificate
Appropriate accessories:
036600 Accessories SYLVAC
Order ID 036571.0100 036571.0200 036571.0300
Range mm 150 300 450
Area of application mm 155 320 470
Resolution mm 0.01 / 0.001 0.01 / 0.001 0.01 / 0.001
Accuracy µm 2.5+L(mm)/175 2.5+L(mm)/175 2.5+L(mm)/175
Repeatability µm 2 2 2
Measuring pressure N 0.2...0.3 0.2...0.3 0.2...0.3
Weight kg 3.9 4.6 6.8
036589 Height measuring instrument TRIMOS V
1D measuring mode
Swiss Made - 3-year guarantee. Shop-suitable measuring instrument with large and very rea-
dable LCD display with 2 rows presentation. Ideal for simple and reliable measurement of heights,
depths and distances as well as inside and outside diameters.
Designs:
Model V3 man., without air pad displacement
Model V4 man., with air pad displacement
Model V5 man. / mot., with air pad displacement
Model V6 man. / mot., with air pad displacement
Features:
mm / inch conversion
Min/max/delta function
Measurement with 2 reference points
PRESET function
Saving of probe constant
Adjustable measuring pressure
Data output RS-232 and USB
Appropriate for probes up to 330 mm
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
Probe with ruby ball Ø 4 mm
Setting gauge
Charger
Manual short / Manual V5
Factory certificate
Appropriate accessories:
036600 Accessories TRIMOS
Order ID Model Range Area of application Resolution Accuracy Repeatability Squareness Measuring pressure Weight
mm mm mm µm µm µm N kg
036589.0340 V3 407 508 0.001 7 2 10 0.75...1.5 21
036589.0370 V3 711 812 0.001 8 2 15 0.75...1.5 24
036589.0440 V4 407 719 0.001 5 2 10 0.75...1.5 21
036589.0470 V4 711 1023 0.001 7 2 15 0.75...1.5 24
036589.1000 V5 407 719 0.001 (2.5+L(mm)/300) 2 5 0.75...1.5 21
036589.1050 V5 711 1023 0.001 (2.5+L(mm)/300) 2 8 0.75...1.5 24
036589.1100 V5 1110 1422 0.001 (2.5+L(mm)/300) 2 11 0.75...1.5 30
036589.1200 V6 407 719 0.0001 (2+L(mm)/400) 1 5 0.75...1.5 21
036589.1250 V6 711 1023 0.0001 (2+L(mm)/400) 1 8 0.75...1.5 24
036589.1300 V6 1110 1422 0.0001 (2+L(mm)/400) 1 11 0.75...1.5 30
