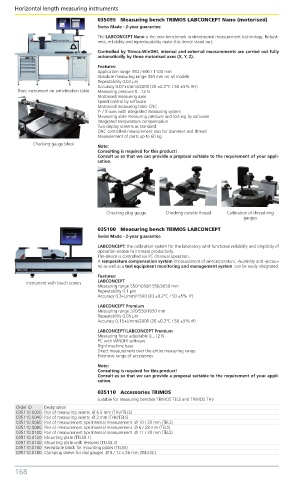

035095 Measuring bench TRIMOS LABCONCEPT Nano (motorised)
Swiss Made - 2-year guarantee
The LABCONCEPT Nano is the new benchmark in dimensional measurement technology. Robust-
ness, reliability and reproducability make this device stand out.

Controlled by Trimos-WinDHI, internal and external measurements are carried out fully
automatically by three motorised axes (X, Y, Z).
Features:
Application range 350 / 600 / 1100 mm
Absolute measuring range 350 mm on all models
Repeatability 0.03 µm
Accuracy 0.07+L(mm)/2000 (20 ±0.2°C / 50 ±5% RH)
Basic instrument on antivibration table Measuring pressure 0...12 N
Motorised measuring axes
Speed control by software
Motorised measuring table CNC
Y- / X-axes with integrated measuring system
Measuring slide measuring pressure and locking by software
Integrated temperature compensation
Two display screens as standard
CNC controlled measurement also for diameter and thread
Measurement of parts up to 60 kg
Checking gauge block
Note:
Consulting is required for this product!
Consult us so that we can provide a proposal suitable to the requirement of your appli-
cation.

Checking plug gauge Checking outside thread Calibration of thread ring
gauges
035100 Measuring bench TRIMOS LABCONCEPT
Swiss Made - 2-year guarantee
LABCONCEPT: the calibration system for the laboratory whit functional reliability and simplicity of
operation enable to increase productivity.
The device is controlled via PC (manual operation.
A temperature compensation system (measurement of air-temperature, -humidity and -pressu-
re) as well as a test equipment monitoring and management system can be easily integrated.
Features:
Instrument with touch screen LABCONCEPT
Measuring range 550/1050/1550/2050 mm
Repeatability 0.1 µm
Accuracy 0.3+L(mm)/1500 (20 ±0.2°C / 50 ±5% rF)
LABCONCEPT Premium
Measuring range 370/550/1050 mm
Repeatability 0.05 µm
Accuracy 0.15+L(mm)/2000 (20 ±0.2°C / 50 ±5% rF)
LABCONCEPT/LABCONCEPT Premium
Measuring force adjustable 0...12 N
PC with WINDHI software
Rigid machine base
Direct measurement over the entire measuring range
Extensive range of accessories
Note:
Consulting is required for this product!
Consult us so that we can provide a proposal suitable to the requirement of your appli-
cation.
035110 Accessories TRIMOS
suitable for measuring benches TRIMOS TELS and TRIMOS THV
Order ID Designation
035110.0020 Pair of measuring inserts Ø 6.5 mm (THV/TELS)
035110.0040 Pair of measuring inserts Ø 2 mm (THV/TELS)
035110.0060 Pair of measurement tips Internal measurement Ø 10 / 20 mm (TELS)
035110.0080 Pair of measurement tips Internal measurement Ø 6 / 28 mm (TELS)
035110.0100 Pair of measurement tips Internal measurement Ø 11 / 30 mm (TELS)
035110.0120 Mounting plate (TELS5.1)
035110.0140 Mounting plate with H-recess (TELS5.3)
035110.0160 Receptacle block for mounting plates (TELS5)
035110.0180 Clamping sleeve for dial gauges Ø 8 / 12 x 26 mm (TELS3C)
