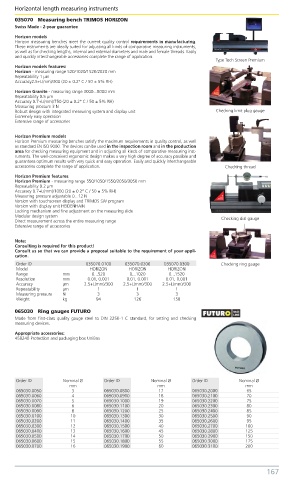

Horizontal length measuring instruments Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
035070 Measuring bench TRIMOS HORIZON
Swiss Made - 2-year guarantee
Horizon models
Horizon measuring benches meet the current quality control requirements in manufacturing.
These instruments are ideally suited for adjusting all kinds of comparative measuring instruments,
as well as for checking lengths, internal and external diameters and male and female threads. Easily
and quickly interchangeable accessories complete the range of application.
Type Toch Screen Premium
Horizon models features:
Horizon - measuring range 520/1020/1520/2020 mm
Repeatability 1 µm
Accuracy2.5+L(mm)/300 (20 ± 0.2° C / 50 ± 5% RH)
Horizon Granite - measuring range 3000...8000 mm
Repeatability 0.5 µm
Accuracy 0.7+L(mm)/750 (20 ± 0.2° C / 50 ± 5% RH)
Measuring pressure 3 N
Robust design with integrated measuring system and display unit Checking limit plug gauge
Extremely easy operation
Extensive range of accessories

Horizon Premium models
Horizon Premium measuring benches satisfy the maximum requirements in quality control, as well
as standard EN ISO 9000. The devices can be used in the inspection room and in the production
area for checking measuring equipment and in adjusting all kinds of comparative measuring inst-
ruments. The well-conceived ergonomic design makes a very high degree of accuracy possible and
guarantees optimum results with very quick and easy operation. Easily and quickly interchangeable
accessories complete the range of application. Checking thread
Horizon Premium features:
Horizon Premium - measuring range 550/1050/1550/2050/3050 mm
Repeatability 0.2 µm
Accuracy 0.7+L(mm)/1000 (20 ± 0.2° C / 50 ± 5% RH)
Measuring pressure adjustable 0...12 N
Version with touchscreen display and TRIMOS SW program
Version with display unit HEIDENHAIN
Locking mechanism and fine adjustment on the measuring slide
Modular design system Checking dial gauge
Direct measurement across the entire measuring range
Extensive range of accessories

Note:
Consulting is required for this product!
Consult us so that we can provide a proposal suitable to the requirement of your appli-
cation.
Order ID 035070.0100 035070.0200 035070.0300 Checking ring gauge
Model HORIZON HORIZON HORIZON
Range mm 0...520 0...1020 0...1520
Resolution mm 0.01, 0.001 0.01, 0.001 0.01, 0.001
Accuracy µm 2.5+L(mm)/300 2.5+L(mm)/300 2.5+L(mm)/300
Repeatability µm 1 1 1
Measuring pressure N 3 3 3
Weight kg 94 126 158
065030 Ring gauges FUTURO
Made from first-class quality gauge steel to DIN 2250-1 C standard, for setting and checking
measuring devices.
Appropriate accessories:
458240 Protection and packaging box UniBox

Order ID Nominal Ø Order ID Nominal Ø Order ID Nominal Ø
mm mm mm
065030.0050 3 065030.0800 17 065030.2000 65
065030.0060 4 065030.0900 18 065030.2100 70
065030.0070 5 065030.1000 19 065030.2200 75
065030.0080 6 065030.1100 20 065030.2300 80
065030.0090 8 065030.1200 25 065030.2400 85
065030.0100 10 065030.1300 30 065030.2500 90
065030.0200 11 065030.1400 35 065030.2600 95
065030.0300 12 065030.1500 40 065030.2700 100
065030.0400 13 065030.1600 45 065030.2800 125
065030.0500 14 065030.1700 50 065030.2900 150
065030.0600 15 065030.1800 55 065030.3000 175
065030.0700 16 065030.1900 60 065030.3100 200
