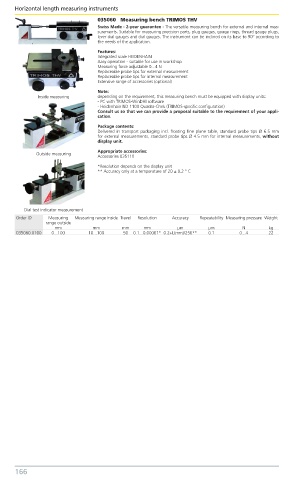

035060 Measuring bench TRIMOS THV
Swiss Made - 2-year guarantee - The versatile measuring bench for external and internal mea-
surements. Suitable for measuring precision parts, plug gauges, gauge rings, thread gauge plugs,
lever dial gauges and dial gauges. The instrument can be inclined on its base to 90° according to
the needs of the application.
Features:
Integrated scale HEIDENHAIN
Aasy operation - suitable for use in workshop
Measuring force adjustable 0...4 N
Replaceable probe tips for external measurement
Replaceable probe tips for internal measurement
Extensive range of accessories (optional)
Note:
Inside measuring depending on the requirement, this measuring bench must be equipped with display units:
- PC with TRIMOS-WinDHI software
- Heidenhain ND 1100 Quadra-Chek (TRIMOS-specific configuration)
Consult us so that we can provide a proposal suitable to the requirement of your appli-
cation.
Package contents:
Delivered in transport packaging incl. floating fine plane table, standard probe tips Ø 6.5 mm
for external measurements, standard probe tips Ø 4.5 mm for internal measurements, without
display unit.
Appropriate accessories:
Outside measuring
Accessories 035110
*Resolution depends on the display unit
** Accuracy only at a temperature of 20 ± 0.2 ° C

Dial test indicator measurement
Order ID Measuring Measuring range inside Travel Resolution Accuracy Repeatability Measuring pressure Weight
range outside
mm mm mm mm µm µm N kg
035060.0100 0...100 10...100 50 0.1...0.00001* 0.2+L(mm)/250** 0.1 0...4 22
