Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

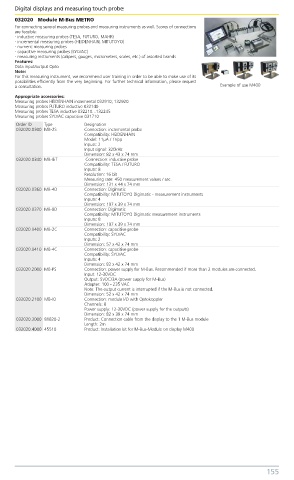

032020 Module M-Bus METRO
For connecting several measuring probes and measuring instruments as well. Scores of connections
are feasible:
- inductive measuring probes (TESA, FUTURO, MAHR)
- incremental measuring probes (HEIDENHAIN, MITUTOYO)
- numeric measuring probes
- capacitive measuring probes (SYLVAC)
- measuring instruments (calipers, gauges, micrometers, scales, etc.) of assorted brands
Features:
Data input/output Opto
Note:
For this measuring instrument, we recommend user training in order to be able to make use of its
possibilities efficiently from the very beginning. For further technical information, please request
a consultation. Example of use M400
Appropriate accessories:
Measuring probes HEIDENHAIN incremental 032910; 132920
Measuring probes FUTURO inductive 032140
Measuring probes TESA inductive 032210...132245
Measuring probes SYLVAC capacitive 031710
Order ID Type Designation
032020.0300 MB-2S Connection: incremental probe
Compatibility: HEIDENHAIN
Model: 11µA / 1Vpp
Inputs: 2
Input signal: 320kHz
Dimension: 82 x 43 x 74 mm
032020.0340 MB-8iT Connection: inductive probe
Compatibility: TESA / FUTURO
Inputs: 8
Resolution: 16 bit
Measuring rate: 450 measurement values / sec.
Dimension: 131 x 44 x 74 mm
032020.0360 MB-4D Connection: Digimatic
Compatibility: MITUTOYO Digimatic - measurement instruments
Inputs: 4
Dimension: 107 x 39 x 74 mm
032020.0370 MB-8D Connection: Digimatic
Compatibility: MITUTOYO Digimatic measurement instruments
Inputs: 8
Dimension: 107 x 39 x 74 mm
032020.0400 MB-2C Connection: capacitive probe
Compatibility: SYLVAC
Inputs: 2
Dimension: 57 x 42 x 74 mm
032020.0410 MB-4C Connection: capacitive probe
Compatibility: SYLVAC
Inputs: 4
Dimension: 82 x 42 x 74 mm
032020.2000 MB-PS Connection: power supply for M-Bus. Recommended if more than 2 modules are connected.
Input: 12-30VDC
Output: 5VDC/3A (power supply for M-Bus)
Adapter: 100 - 235 VAC
Note: The output current is interrupted if the M-Bus is not connected.
Dimension: 52 x 42 x 74 mm
032020.2100 MB-IO Connection: module I/O with Optokoppler
Channels: 8
Power supply: 12-30VDC (power supply for the outputs)
Dimension: 82 x 39 x 74 mm
032020.3000 81820-2 Product: Connection cable from the display to the 1 M-Bus module
Length: 2m
032020.4000 45510 Product: Installation kit for M-Bus-Module on display M400
