Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

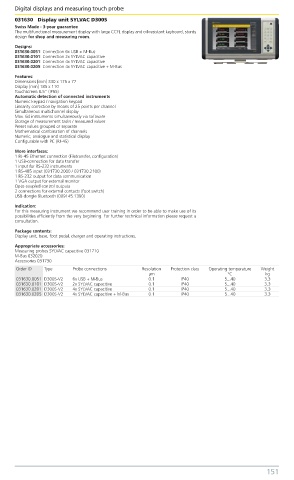

031630 Display unit SYLVAC D300S
Swiss Made - 3-year guarantee
The multifunctional measurement display with large CCFL display and oil-resistant keyboard, sturdy
design for shop and measuring room.
Designs:
031630.0051: Connection 6x USB + M-Bus
031630.0101: Connection 2x SYLVAC capacitive
031630.0201: Connection 4x SYLVAC capacitive
031630.0205: Connection 4x SYLVAC capacitive + M-Bus
Features:
Dimensions [mm] 330 x 175 x 77
Display [mm] 185 x 110
Touchscreen 8.5“ (IP65)
Automatic detection of connected instruments
Numeric keypad / navigation keypad
Linearity correction by means of 25 points per channel
Simultaneous multichannel display
Max. 64 instruments simultaneously via software
Storage of measurement tasks / measured values
Preset values grouped or separate
Mathematical combination of channels
Numeric, analogue and statistical display
Configurable with PC (RJ-45)
More interfaces:
1 RJ-45 Ethernet connection (Filetransfer, configuration)
1 USB-connection for data transfer
1 input for RS-232 instruments
1 RS-485 input (031730.2000 / 031730.2100)
1 RS-232 output for data communication
1 VGA output for external monitor
Opto-coupled control outputs
2 connections for external contacts (foot switch)
USB-dongle Bluetooth (009145.1390)
Indication:
For this measuring instrument we recommend user training in order to be able to make use of its
possibilities efficiently from the very beginning. For further technical information please request a
consultation.
Package contents:
Display unit, base, foot pedal, charger and operating instructions.
Appropriate accessories:
Measuring probes SYLVAC capacitive 031710
M-Bus 032020
Accessories 031730
Order ID Type Probe connections Resolution Protection class Operating temperature Weight
µm °C kg
031630.0051 D300S-V2 6x USB + M-Bus 0.1 IP40 5...40 3.3
031630.0101 D300S-V2 2x SYLVAC capacitive 0.1 IP40 5...40 3.3
031630.0201 D300S-V2 4x SYLVAC capacitive 0.1 IP40 5...40 3.3
031630.0205 D300S-V2 4x SYLVAC capacitive + M-Bus 0.1 IP40 5...40 3.3
