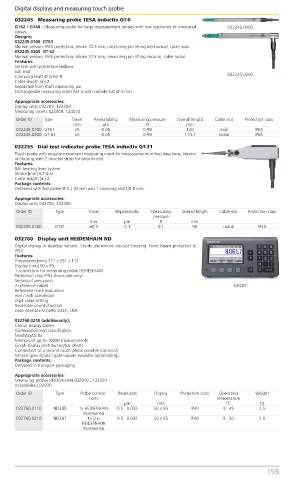

Digital displays and measuring touch probes  Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      032245   Measuring probe TESA inductiv GT-6
      GT42 / GT44 - Measuring probe for large measurement ranges with low resolution of measured   032245.0100
      values.
      Designs:
      032245.0100: GT61
      Normal version, IP65 protection, stroke 10.3 mm, measuring pin lifting mechanical, cable axial
      032245.0200: GT 62
      Normal version, IP65 protection, stroke 10.3 mm, measuring pin lifting vacuum, cable radial
      Features:
      Version with protection bellows
      ball lead
      Clamping shaft Ø [mm] 8                                             032245.0200
      Cable length [m] 2
      Separated from shaft measuring pin
      Exchangeable measuring insert M2.5 with carbide ball Ø 3 mm
      Appropriate accessories:
      Display units 032205; 132206
      Measuring inserts 024008; 124010
      Order ID  Type    Travel  Repeatability  Measuring pressure  Overall length  Cable exit  Protection class
                         mm       µm            N            mm
      032245.0100 GT61   ±5       0.05         0.90          120        axial      IP65
      032245.0200 GT 62  ±5       0.05         0.90         110.7      radial      IP65
      032255   Dial test indicator probe TESA inductiv GT-31
      Touch probe with angular-movement measuring insert for measurements in two directions. Version
      in housing with 2 dovetail strips for attachment.
      Features:
      Ball bearing lever system
      Stroke [mm] 0.7 mm
      Cable length [m] 2
      Package contents:
      Delivered with ball probe Ø 2 x 32 mm and 1 clamping shaft Ø 8 mm.
      Appropriate accessories:
      Display units 032205; 132206
      Order ID     Type      Travel   Repeatability  Measuring   Overall length  Cable exit  Protection class
                                                  pressure
                              mm         µm         N          mm
      032255.0100  GT31       ±0.3       0.1        0.1        90        radial     IP40
      032760   Display unit HEIDENHAIN ND
      Digital display in desktop version. Sturdy aluminium die-cast housing. Front board protected to
      IP54.
      Features:
      Dimensions [mm] 211 x 251 x 112
      Display [mm] 50 x 95
      1 connection for measuring probe HEIDENHAIN
      Protection class IP54 (front side only)
      Setting of zero point
      2 reference values                                                    ND287
      Reference mark evaluation
      mm / inch conversion
      Digit value setting
      Reversible count direction
      Data interface V.24/RS-232C, USB
      032760.0210 (additionally):
      Colour display screen
      Go/rework/no-go classification
      Min/Max/Delta
      Memory of up to 10000 measurements
      Graph display (distribution/bar chart)
      Connection of a second touch probe possible (optional)
      Various gate inputs / gate ouputs available (automating)
      Package contents:
      Delivered in transport packaging.
      Appropriate accessories:
      Measuring probes HEIDENHAIN 032910...132920
      Accessories 032930
      Order ID     Type    Probe connec-  Resolution  Display  Protection class  Operating   Weight
                              tions                                    temperature
                                         µm         mm                    °C         kg
      032760.0110  ND280  1x HEIDENHAIN   0.5...0.002  50 x 95  IP40     0...45     2.5
                            incremental
      032760.0210  ND287     1x (2x)   0.5...0.002  50 x 95   IP40       0...50     2.5
                           HEIDENHAIN
                            incremental






      Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch  159
