Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

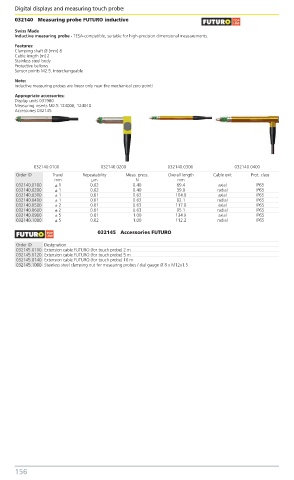

032140 Measuring probe FUTURO inductive

Swiss Made
Inductive measuring probe - TESA-compatible, suitable for high-precision dimensional measurements.
Features:
Clamping shaft Ø [mm] 8
Cable length [m] 2
Stainless steel body
Protective bellows
Sensor points M2.5, interchangeable
Note:
Inductive measuring probes are linear only near the mechanical zero point!
Appropriate accessories:
Display units 031980
Measuring inserts M2.5 124008; 124010
Accessories 032145

032140.0100 032140.0200 032140.0300 032140.0400
Order ID Travel Repeatability Meas. press. Overall length Cable exit Prot. class
mm µm N mm
032140.0100 ± 1 0.02 0.40 69.4 axial IP65
032140.0200 ± 1 0.02 0.40 39.0 radial IP65
032140.0300 ± 1 0.01 0.63 104.8 axial IP65
032140.0400 ± 1 0.01 0.63 82.1 radial IP65
032140.0500 ± 2 0.01 0.63 117.8 axial IP65
032140.0600 ± 2 0.01 0.63 95.1 radial IP65
032140.0900 ± 5 0.01 1.00 134.9 axial IP65
032140.1000 ± 5 0.02 1.00 112.2 radial IP65
032145 Accessories FUTURO

Order ID Designation
032145.0110 Extension cable FUTURO (for touch probe) 2 m
032145.0120 Extension cable FUTURO (for touch probe) 5 m
032145.0140 Extension cable FUTURO (for touch probe) 10 m
032145.1000 Stainless steel clamping nut for measuring probes / dial gauge Ø 8 x M12x1.5
