Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch

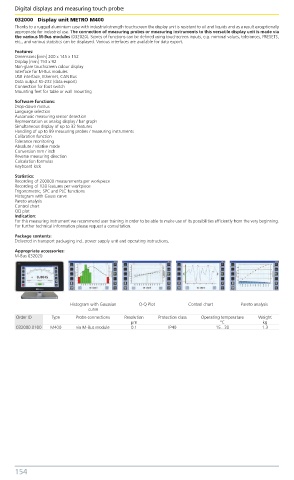

032000 Display unit METRO M400
Thanks to a rugged aluminium case with industrial-strength touchscreen the display unit is resistant to oil and liquids and as a result exceptionally
appropriate for industrial use. The connection of measuring probes or measuring instruments to this versatile display unit is made via
the various M-Bus modules (032020). Scores of functions can be defined using touchscreen inputs, e.g. nominal values, tolerances, PRESETS,
etc., and various statistics can be displayed. Various interfaces are available for data export.
Features:
Dimensions [mm] 200 x 145 x 152
Display [mm] 153 x 92
Non-glare touchscreen colour display
Interface for M-Bus modules
USB interface, Ethernet, CAN Bus
Data output RS-232 (data export)
Connection for foot switch
Mounting feet for table or wall mounting
Software functions:
Drop-down menus
Language selection
Automatic measuring sensor detection
Representation as analog display / bar graph
Simultaneous display of up to 32 features
Handling of up to 99 measuring probes / measuring instruments
Calibration function
Tolerance monitoring
Absolute / relative mode
Conversion mm / inch
Reverse measuring direction
Calculation formulas
Keyboard lock
Statistics:
Recording of 200000 measurements per workpiece
Recording of 128 features per workpiece
Trigonometric, SPC and PLC functions
Histogram with Gauss curve
Pareto analysis
Control chart
QQ plot
Indication:
For this measuring instrument we recommend user training in order to be able to make use of its possibilities efficiently from the very beginning.
For further technical information please request a consultation.
Package contents:
Delivered in transport packaging incl. power supply unit and operating instructions.
Appropriate accessories:
M-Bus 032020

Histogram with Gaussian Q-Q Plot Control chart Pareto analysis
curve
Order ID Type Probe connections Resolution Protection class Operating temperature Weight
µm °C kg
032000.0100 M400 via M-Bus module 0.1 IP40 15...30 1.3
