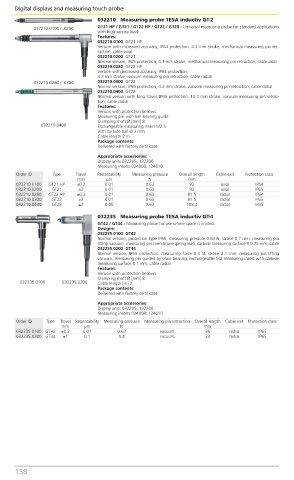

Digital displays and measuring touch probes  Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
                                032210   Measuring probe TESA inductiv GT-2
            032210.0100 / .0200  GT21 HP / GT21 / GT22 HP / GT22 / GT28 - Universal measuring probe for standard applications
                                with high service load.
                                Features:
                                032210.0100: GT21 HP
                                Version with increased accuracy, IP64 protection, 4.3 mm stroke, mechanical measuring pin ret-
                                raction, cable axial
                                032210.0200: GT21
                                Normal version, IP65 protection, 4.3 mm stroke, mechanical measuring pin retraction, cable axial
                                032210.0280: GT22 HP
                                Version with increased accuracy, IP64 protection,
                                4.3 mm stroke, vacuum measuring pin retraction, cable radial
            032210.0280 / .0300  032210.0300: GT22
                                Normal version, IP65 protection, 4.3 mm stroke, vacuum measuring pin retraction, cable radial
                                032210.0400: GT28
                                Normal version with long travel, IP65 protection, 10.3 mm stroke, vacuum measuring pin retrac-
                                tion, cable radial
                                Features:
                                Version with protection bellows
                                Measuring pin with ball-bearing guide
                                Clamping shaft Ø [mm] 8
              032210.0400       Exchangeable measuring insert M2.5
                                with carbide ball Ø 3 mm
                                Cable length 2 m
                                Package contents:
                                Delivered with factory certificate.
                                Appropriate accessories:
                                Display units 032205; 132206
                                Measuring inserts 024008; 124010
      Order ID    Type   Travel  Repeatability  Measuring pressure  Overall length  Cable exit  Protection class
                          mm       µm            N            mm
      032210.0100  GT21 HP  ±0.2   0.01         0.63          92        axial      IP64
      032210.0200  GT21   ±2       0.01         0.63          92        axial      IP65
      032210.0280  GT22 HP  ±0.2   0.01         0.63         81.5       radial     IP64
      032210.0300  GT22   ±2       0.01         0.63         81.5       radial     IP65
      032210.0400  GT28   ±2       0.05         0.63         108.4      radial     IP65
                                032235   Measuring probe TESA inductiv GT-4
                                GT42 / GT44 - Measuring probe for use where space is limited.
                                Designs:
                                032235.0100: GT42
                                Normal version, protection type IP65, measuring pressure 0.63 N, stroke 0.7 mm, measuring pin
                                lifting vacuum, measuring pin membrane spring lead, carbide measuring surface R 0.75 mm, cable
                                032235.0200: GT44
                                Normal  version,  IP65  protection,  measuring  force  0.4  N,  stroke  2.1  mm,  measuring  pin  lifting
                                vacuum, measuring pin guided by plain bearing, exchangeable M2 measuring insert with carbide
                                measuring surface R 1 mm, cable radial
                                Features:
                                Version with protection bellows
                                Clamping shaft Ø [mm] 8
       032235.0100   032235.0200  Cable length [m] 2
                                Package contents:
                                Delivered with factory certificate
                                Appropriate accessories:
                                Display units 032205; 132206
                                Measuring inserts 024008; 124010
      Order ID  Type  Travel  Repeatability  Measuring pressure  Measuring pin retraction  Overall length  Cable exit  Protection class
                     mm     µm          N                          mm
      032235.0100 GT42  ±0.3  0.01     0.63          vacuum        36      radial   IP65
      032235.0200 GT44  ±1  0.1        0.4           vacuum        33      radial   IP65
