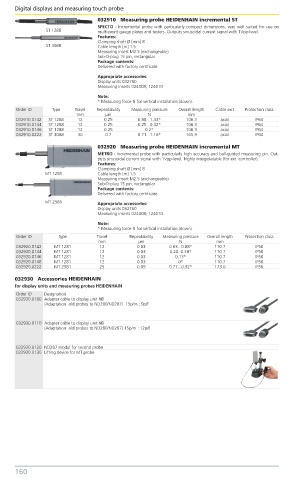

                                032910   Measuring probe HEIDENHAIN incremental ST
                                SPECTO - Incremental probe with particularly compact dimensions, very well suited for use on
                ST 1288         multi-point gauge plates and testers. Outputs sinusoidal current signal with 1Vpp-level.
                                Features:
                                Clamping shaft Ø [mm] 8
                ST 3088         Cable length [m] 1.5
                                Measuring insert M2.5 (exchangeable)
                                Sub-D-plug 15 pin, rectangular
                                Package contents:
                                Delivered with factory certificate.
                                Appropriate accessories:
                                Display units 032760
                                Measuring inserts 024008; 124010
                                Note:
                                * Measuring force N for vertical installation (down).
      Order ID    Type   Travel  Repeatability  Measuring pressure  Overall length  Cable exit  Protection class
                          mm       µm            N            mm
      032910.0142  ST 1288  12     0.25      0.88...1.33*    106.3      axial      IP64
      032910.0144  ST 1288  12     0.25      0.25...0.32*    106.3      axial      IP64
      032910.0146  ST 1288  12     0.25         0.2*         106.3      axial      IP64
      032910.0222  ST 3088  30     0.7       0.71...1.16*    165.9      axial      IP64
                                032920   Measuring probe HEIDENHAIN incremental MT
                                METRO - Incremental probe with particularly high accuracy and ball-guided measuring pin. Out-
                                puts sinusoidal current signal with 1Vpp-level, highly interpolatable (for ext. controller).
                                Features:
                                Clamping shaft Ø [mm] 8
                MT 1281         Cable length [m] 1.5
                                Measuring insert M2.5 (exchangeable)
                                Sub-D-plug 15 pin, rectangular
                                Package contents:
                                Delivered with factory certificate.
                MT 2581         Appropriate accessories:
                                Display units 032760
                                Measuring inserts 024008; 124010
                                Note:
                                * Measuring force N for vertical installation (down).
      Order ID      Type        Travel     Repeatability  Measuring pressure  Overall length  Protection class
                                 mm           µm           N           mm
      032920.0142  MT 1281       12          0.03       0.63...0.88*  110.7        IP50
      032920.0144  MT 1281       12          0.03       0.20..0.28*   110.7        IP50
      032920.0146  MT 1281       12          0.03        0.13*        110.7        IP50
      032920.0148  MT 1281       12          0.03         0*          110.7        IP50
      032920.0222  MT 2581       25          0.09       0.77...0.92*  173.0        IP50
      032930   Accessories HEIDENHAIN
      for display units and measuring probes HEIDENHAIN
      Order ID  Designation
      032930.0100 Adapter cable to display unit ND
               (Adaptation: old probes to ND280/ND287)  15p/m : 9p/f

      032930.0110 Adapter cable to display unit ND
               (Adaptation: old probes to ND280/ND287) 15p/m : 12p/f


      032930.0120 ND287 modul for second probe
      032930.0130 Lifting device for MT probe
