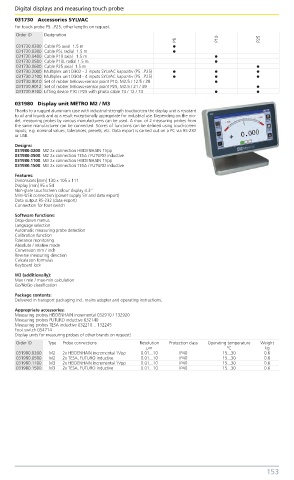

Page 158 - Benma | Blue book 5.0

Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
031730 Accessories SYLVAC
For touch probe P5...P25, other lengths on request.
Order ID Designation
P5 P10 P25
031730.0200 Cable P5 axial 1.5 m
031730.0300 Cable P5L radial 1.5 m
031730.0400 Cable P10 axial 1.5 m
031730.0500 Cable P10L radial 1.5 m
031730.0600 Cable P25 axial 1.5 m
031730.2000 Multiplex unit D302 - 2 inputs SYLVAC kapazitiv (P5...P25)
031730.2100 Multiplex unit D304 - 4 inputs SYLVAC kapazitiv (P5...P25)
031730.9010 Set of rubber bellows+sensor point P10, M2.5 / 12.5 / 28
031730.9012 Set of rubber bellows+sensor point P25, M2.5 / 21 / 49
031730.9100 Lifting device P10 / P25 with photo cable 74 / 12 / 73
031980 Display unit METRO M2 / M3
Thanks to a rugged aluminium case with industrial-strength touchscreen the display unit is resistant
to oil and liquids and as a result exceptionally appropriate for industrial use. Depending on the mo-
del, measuring probes by various manufacturers can be used. A max. of 2 measuring probes from
the same manufacturer can be connected. Scores of functions can be defined using touchscreen
inputs, e.g. nominal values, tolerances, presets, etc. Data export is carried out on a PC via RS-232
or USB.
Designs:
031980.0200: M2 2x connection HEIDENHAIN 1Vpp
031980.0500: M2 2x connection TESA / FUTURO inductive
031980.1100: M3 2x connection HEIDENHAIN 1Vpp
031980.1500: M3 2x connection TESA / FUTURO inductive
Features:
Dimensions [mm] 130 x 105 x 111
Display [mm] 95 x 54
Non-glare touchscreen colour display 4.3“
Mini-USB connection (power supply 5V and data export)
Data output RS-232 (data export)
Connection for foot switch
Software functions:
Drop-down menus
Language selection
Automatic measuring probe detection
Calibration function
Tolerance monitoring
Absolute / relative mode
Conversion mm / inch
Reverse measuring direction
Calculation formulas
Keyboard lock
M3 (additionally):
Max / min / max-min calculation
Go/NoGo classification
Package contents:
Delivered in transport packaging incl. mains adapter and operating instructions.
Appropriate accessories:
Measuring probes HEIDENHAIN incremental 032910 / 132920
Measuring probes FUTURO inductive 032140
Measuring probes TESA inductive 032210... 132245
Foot switch 054714
Display units for measuring probes of other brands on request!
Order ID Type Probe connections Resolution Protection class Operating temperature Weight
µm °C kg
031980.0200 M2 2x HEIDENHAIN incremental 1Vpp 0.01...10 IP40 15...30 0.6
031980.0500 M2 2x TESA, FUTURO inductive 0.01...10 IP40 15...30 0.6
031980.1100 M3 2x HEIDENHAIN incremental 1Vpp 0.01...10 IP40 15...30 0.6
031980.1500 M3 2x TESA, FUTURO inductive 0.01...10 IP40 15...30 0.6

Brütsch/Rüegger Tools Ltd. • Heinrich Stutz-Strasse 20 • P.O. Box • CH-8902 Urdorf • www.brw.ch 153
