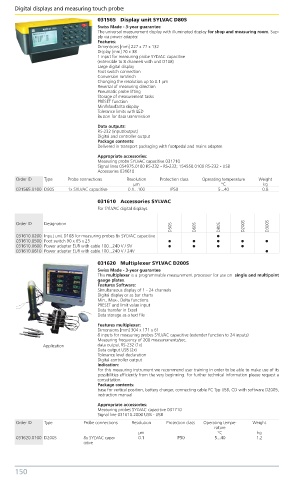

Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
031565 Display unit SYLVAC D80S
Swiss Made - 3-year guarantee
The universal measurement display with illuminated display for shop and measuring room. Sup-
ply via power adapter.
Features:
Dimensions [mm] 227 x 77 x 132
Display [mm] 70 x 38
1 input for measuring probe SYLVAC capacitive
(extensible to 8 channels with unit D108)
Large digital display
Foot switch connection
Conversion mm/inch
Changing the resolution up to 0.1 µm
Reversal of measuring direction
Pneumatic probe lifting
Storage of measurement tasks
PRESET function
Min/Max/Delta display
Tolerance limits with LED
Button for data transmission
Data outputs:
RS-232 (input/output)
Digital and controller output
Package contents:
Delivered in transport packaging with footpedal and mains adapter.
Appropriate accessories:
Measuring probe SYLVAC capacitive 031710
Signal lines 054975.0100 RS-232 - RS-232; 154550.0100 RS-232 - USB
Accessories 031610
Order ID Type Probe connections Resolution Protection class Operating temperature Weight
µm °C kg
031565.0100 D80S 1x SYLVAC capacitive 0.1...100 IP50 5...40 0.8
031610 Accessories SYLVAC
For SYLVAC digital displays.

Order ID Designation
D50S D60S D80S D200S D300S
031610.0200 Input unit D108 for measuring probes 8x SYLVAC capacitive
031610.0500 Foot switch 90 x 65 x 25
031610.0600 Power adapter EUR with cable 100...240 V / 9V
031610.0610 Power adapter EUR with cable 100...240 V / 24V
031620 Multiplexer SYLVAC D200S
Swiss Made - 3-year guarantee
This multiplexer is a programmable measurement processor for use on single and multipoint
gauge plates.
Features Software:
Simultaneous display of 1 - 24 channels
Digital display or as bar charts
Min., Max-, Delta functions
PRESET and limit value input
Data transfer in Excel
Data storage as a text file
Features multiplexer:
Dimensions [mm] 304 x 171 x 61
8 inputs for measuring probes SYLVAC capacitive (extender function to 24 inputs)
Measuring frequency of 200 measurements/sec.
Application data output RS-232 (1x)
Data output USB (2x)
Tolerance level declaration
Digital controller output
Indication:
For this measuring instrument we recommend user training in order to be able to make use of its
possibilities efficiently from the very beginning. For further technical information please request a
consultation.
Package contents:
base for vertical position, battery charger, connecting cable PC Typ USB, CD with software D2005,
instruction manual
Appropriate accessories:
Measuring probes SYLVAC capacitive 031710
Signal line 031610.2000 USB - USB
Order ID Type Probe connections Resolution Protection class Operating tempe- Weight
rature
µm °C kg
031620.0100 D200S 8x SYLVAC capa- 0.1 IP50 5...40 1.2
citive
