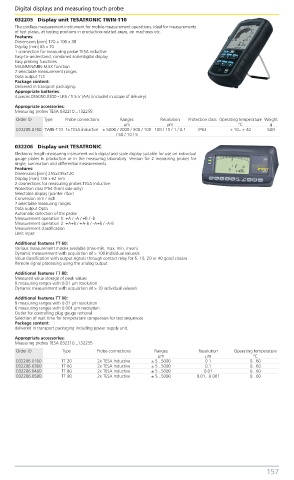

Digital displays and measuring touch probes  Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
      032205   Display unit TESATRONIC TWIN-T10
      The cordless measurement instrument for mobile measurement operations. Ideal for measurements
      of test plates, at testing positions in production-related areas, on machines etc.
      Features:
      Dimensions [mm] 170 x 100 x 38
      Display [mm] 65 x 70
      1 connection for measuring probe TESA inductive
      Easy-to-understand, combined scale/digital display
      Easy probing functions
      MAX/MIN/MIN-MAX function
      7 selectable measurement ranges
      Data output TLC
      Package content:
      Delivered in transport packaging.
      Appropriate batteries:
      4 pieces 055050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
      Appropriate accessories:
      Measuring probes TESA 032210...132255
      Order ID  Type  Probe connections  Ranges      Resolution  Protection class Operating temperature Weight
                                         µm            µm                     °C        g
      032205.0100 TWIN-T10 1x TESA inductive  ± 5000 / 2000 / 500 / 100  100 / 10 / 1 / 0.1  IP63  + 10...+ 40  500
                                      / 50 / 10 / 5
      032206   Display unit TESATRONIC
      Electronic length measuring instrument with digital and scale display suitable for use on individual
      gauge plates in production or in the measuring laboratory. Version for 2 measuring probes for
      single, summation and differential measurements.
      Features:
      Dimensions [mm] 255x235x120
      Display [mm] 126 x 62 mm
      2 connections for measuring probes TESA inductive
      Protection class IP54 (front side only)
      Selectable display (pointer / bar)
      Conversion mm / inch
      7 selectable measuring ranges
      Data output Opto
      Automatic detection of the probe
      Measurement operation 1: +A / -A / +B / -B
      Measurement operation 2: +A+B / +A-B / -A+B / -A-B
      Measurement classification
      Limit input
      Additional features TT 60:
      Various measurement modes available (max-min, max, min, mean)
      Dynamic measurement with acquisition of > 100 individual values/s
      Value classification with output signals through contact relay for 5, 10, 20 or 40 good classes
      Remote signal processing using the analog output
      Additional features TT 80:
      Measured value storage of peak values
      9 measuring ranges with 0.01 µm resolution
      Dynamic measurement with acquisition of > 10 individual values/s
      Additional features TT 90:
      9 measuring ranges with 0.01 µm resolution
      6 measuring ranges with 0.001 µm resolution
      Outlet for controlling plug gauge removal
      Selection of wait time for temperature comparison for test sequences
      Package content:
      delivered in transport packaging including power supply unit.
      Appropriate accessories:
      Measuring probes TESA 032210...132255
      Order ID       Type       Probe connections  Ranges        Resolution  Operating temperature
                                                    µm             µm              °C
      032206.0100    TT 20      2x TESA inductive  ± 5...5000      0.1            0...60
      032206.0300    TT 60      2x TESA inductive  ± 5...5000      0.1            0...60
      032206.0400    TT 80      2x TESA inductive  ± 5...5000      0.01           0...60
      032206.0500    TT 90      2x TESA inductive  ± 5...5000   0.01...0.001      0...60
