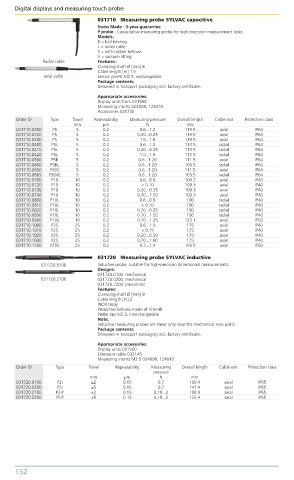

Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
031710 Measuring probe SYLVAC capacitive
Swiss Made - 3-year guarantee
P probe - Capacitative measuring probe for high precision measurement tasks.
Models:
B = ball bearing
L = radial cable
S = with rubber bellows
V = vacuum lifting
Radial cable Features :
Clamping shaft Ø [mm] 8
Cable length [m] 1.5
axial cable Sensor points M2.5, exchangeable
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate accessories:
Display units from 031560
Measuring inserts 024008; 124010
Accessories 031730
Order ID Type Travel Repeatability Measuring pressure Overall length Cable exit Protection class
mm µm N mm
031710.0300 P5 5 0.2 0.6...1.2 119.5 axial IP64
031710.0320 P5 5 0.2 0.20...0.25 119.5 axial IP64
031710.0330 P5 5 0.2 1.0...1.8 119.5 axial IP64
031710.0400 P5L 5 0.2 0.6...1.2 113.5 radial IP64
031710.0410 P5L 5 0.2 0.20...0.25 113.5 radial IP64
031710.0420 P5L 5 0.2 1.0...1.8 113.5 radial IP64
031710.0500 P5B 5 0.2 0.6...1.20 111.5 axial IP64
031710.0600 P5BL 5 0.2 0.6...1.20 105.5 radial IP64
031710.0650 P5BV 5 0.2 0.6...1.20 111.5 axial IP64
031710.0665 P5BVL 5 0.2 0.6...1.20 105.5 radial IP64
031710.0700 P10 10 0.2 0.6...0.8 109.3 axial IP40
031710.0720 P10 10 0.2 < 0.10 109.3 axial IP40
031710.0730 P10 10 0.2 0.20...0.25 109.3 axial IP40
031710.0740 P10 10 0.2 0.70...1.50 109.3 axial IP40
031710.0800 P10L 10 0.2 0.6...0.8 100 radial IP40
031710.0810 P10L 10 0.2 < 0.10 100 radial IP40
031710.0820 P10L 10 0.2 0.20...0.25 100 radial IP40
031710.0830 P10L 10 0.2 0.70...1.50 100 radial IP40
031710.0900 P10S 10 0.2 0.70...1.25 123.1 axial IP50
031710.1000 P25 25 0.2 0.6...1.0 175 axial IP40
031710.1010 P25 25 0.2 < 0.15 175 axial IP40
031710.1020 P25 25 0.2 0.20...0.30 175 axial IP40
031710.1030 P25 25 0.2 0.70...1.60 175 axial IP40
031710.1100 P25S 25 0.2 0.7...1.4 195.5 axial IP50
031720 Measuring probe SYLVAC inductive
031720.0100 Inductive probe, suitable for high-precision dimensional measurements.
Designs:
031720.0100: mechanical
031720.2100 031720.0200: mechanical
031720.2200: pneumatic
Features:
Clamping shaft Ø [mm] 8
Cable length [m] 2
INOX body
Protective bellows made of Viton®
Probe tips M2.5, interchangeable
Note:
Inductive measuring probes are linear only near the mechanical zero point.
Package contents:
Delivered in transport packaging incl. factory certificate.
Appropriate accessories:
Display units 031560
Extension cable 032145
Measuring inserts M2.5 024008; 124010
Order ID Type Travel Repeatability Measuring Overall length Cable exit Protection class
pressure
mm µm N mm
031720.0100 P2i ±2 0.15 0.7 109.4 axial IP65
031720.0200 P5i ±5 0.15 0.7 147.4 axial IP65
031720.2100 P2iP ±2 0.15 0.18...2 108.9 axial IP65
031720.2200 P5iP ±5 0.15 0.18...2 135.4 axial IP65
