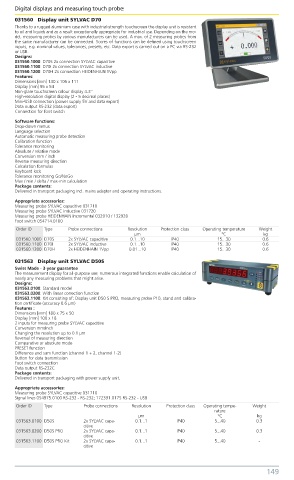

Digital displays and measuring touch probes Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
031560 Display unit SYLVAC D70
Thanks to a rugged aluminium case with industrial-strength touchscreen the display unit is resistant
to oil and liquids and as a result exceptionally appropriate for industrial use. Depending on the mo-
del, measuring probes by various manufacturers can be used. A max. of 2 measuring probes from
the same manufacturer can be connected. Scores of functions can be defined using touchscreen
inputs, e.g. nominal values, tolerances, presets, etc. Data export is carried out on a PC via RS-232
or USB.
Designs:
031560.1000: D70S 2x connection SYLVAC capacitive
031560.1100: D70I 2x connection SYLVAC inductive
031560.1200: D70H 2x connection HEIDENHAIN 1Vpp
Features:
Dimensions [mm] 130 x 105 x 111
Display [mm] 95 x 54
Non-glare touchscreen colour display 4.3“
High-resolution digital display (2 - 5 decimal places)
Mini-USB connection (power supply 5V and data export)
Data output RS-232 (data export)
Connection for foot switch
Software functions:
Drop-down menus
Language selection
Automatic measuring probe detection
Calibration function
Tolerance monitoring
Absolute / relative mode
Conversion mm / inch
Reverse measuring direction
Calculation formulas
Keyboard lock
Tolerance monitoring Go/NoGo
Max / min / delta / max-min calculation
Package contents:
Delivered in transport packaging incl. mains adapter and operating instructions.
Appropriate accessories:
Measuring probe SYLVAC capacitive 031710
Measuring probe SYLVAC inductive 031720
Measuring probe HEIDENHAIN incremental 032910 / 132920
Foot switch 054714.0100
Order ID Type Probe connections Resolution Protection class Operating temperature Weight
µm °C kg
031560.1000 D70S 2x SYLVAC capacitive 0.1...10 IP40 15...30 0.6
031560.1100 D70I 2x SYLVAC inductive 0.1...10 IP40 15...30 0.6
031560.1200 D70H 2x HEIDENHAIN 1Vpp 0.01...10 IP40 15...30 0.6
031563 Display unit SYLVAC D50S
Swiss Made - 3-year guarantee
The measurement display for all-purpose use; numerous integrated functions enable calculation of
nearly any measuring problems that might arise.
Designs:
031563.0100: Standard model
031563.0200: With linear correction function
031563.1100: Kit consisting of: Display unit D50 S PRO, measuring probe P10, stand and calibra-
tion certificate (accuracy 0.6 µm)
Features :
Dimensions [mm] 180 x 75 x 50
Display [mm] 100 x 18
2 inputs for measuring probe SYLVAC capacitive
Conversion mm/inch
Changing the resolution up to 0.1 µm
Reversal of measuring direction
Comparative or absolute mode
PRESET function
Difference and sum function (channel 1 + 2, channel 1-2)
Button for data transmission
Foot switch connection
Data output RS-232C
Package contents:
Delivered in transport packaging with power supply unit.
Appropriate accessories:
Measuring probe SYLVAC capacitive 031710
Signal lines 054975.0100 RS-232 - RS-232; 172391.0175 RS-232 - USB
Order ID Type Probe connections Resolution Protection class Operating tempe- Weight
rature
µm °C kg
031563.0100 D50S 2x SYLVAC capa- 0.1...1 IP40 5...40 0.3
citive
031563.0200 D50S PRO 2x SYLVAC capa- 0.1...1 IP40 5...40 0.3
citive
031563.1100 D50S PRO Kit 2x SYLVAC capa- 0.1...1 IP40 5...40 -
citive
