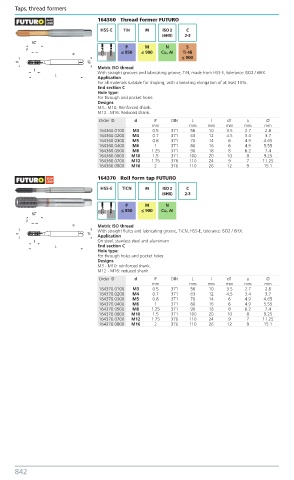

Taps, thread formers Tel. +41 44 736 63 63 • Fax +41 44 736 63 00 • sales@brw.ch
1 64360 Thread former FUTURO

HSS-E TiN M ISO 2 C
(6HX) 2-3
P M N S
≤ 850 ≤ 900 Cu, AI Ti-Ni
≤ 900
Metric ISO thread
With straight grooves and lubricating groove, TiN, made from HSS-E, tolerance ISO2 / 6HX.
Application
For all materials suitable for shaping, with a breaking elongation of at least 10%.
End section C
Hole type:
For through and pocket holes.
Designs
M3...M10: Reinforced shank.
M12...M16: Reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164360.0100 M3 0.5 371 56 10 3.5 2.7 2.8
164360.0200 M4 0.7 371 63 12 4.5 3.4 3.7
164360.0300 M5 0.8 371 70 14 6 4.9 4.65
164360.0400 M6 1 371 80 16 6 4.9 5.55
164360.0500 M8 1.25 371 90 18 8 6.2 7.4
164360.0600 M10 1.5 371 100 20 10 8 9.25
164360.0700 M12 1.75 376 110 24 9 7 11.25
164360.0800 M16 2 376 110 26 12 9 15.1
1 64370 Roll form tap FUTURO
HSS-E TiCN M ISO 2 C
(6HX) 2-3

P M N
≤ 850 ≤ 900 Cu, AI

Metric ISO thread
With straight flutes and lubricating groove, TiCN, HSS-E, tolerance ISO2 / 6HX.
Application
On steel, stainless steel and aluminium
End section C
Hole type:
For through holes and pocket holes.
Designs
M3 - M10: reinforced shank.
M12 - M16: reduced shank.
Order ID d P DIN L l d1 a Ø
mm mm mm mm mm mm
164370.0100 M3 0.5 371 56 10 3.5 2.7 2.8
164370.0200 M4 0.7 371 63 12 4.5 3.4 3.7
164370.0300 M5 0.8 371 70 14 6 4.9 4.65
164370.0400 M6 1 371 80 16 6 4.9 5.55
164370.0500 M8 1.25 371 90 18 8 6.2 7.4
164370.0600 M10 1.5 371 100 20 10 8 9.25
164370.0700 M12 1.75 376 110 24 9 7 11.25
164370.0800 M16 2 376 110 26 12 9 15.1
